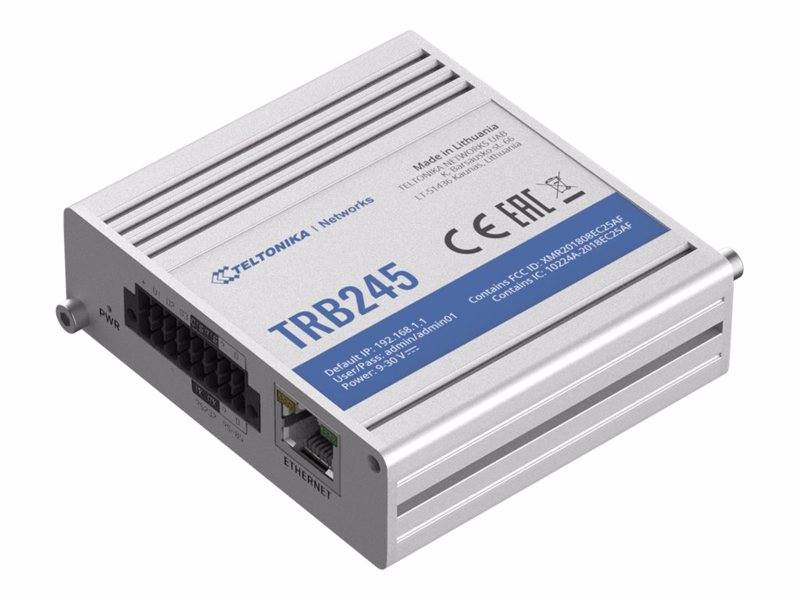

Teltonika TRB245 - Passerelle industrielle LTE Cat 4

<a href="https://teltonika-networks.com/product/trb245/#features" style="display: block;">https://teltonika-networks.com/product/trb245/#features</a><br><br>Industrial LTE Cat 4 Gateway TRB245 is equipped with GNSS receiver, Ethernet port, durable 16 pin connector block. This Gateway board packs all essential features for an industry in one package: secure power connector, I/O ports, serial communication, fast and reliable internet connection. TRB245 can be used to integrate modern and legacy industrial equipment in one solution and with a wide range of software features such as SMS control, Firewall, open VPN, IPSec, RMS user can be ensured that data can be reached securely and without compromises.<br><br>

Teltonika TRB245. Forwarding rate: 150 Mpps. Management protocols: SNMP, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned),... Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Console port: RS-232, Serial interface type: RS-232/485. Width: 83 mm, Depth: 25 mm, Height: 74 mm

Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable Internet connection, combination of Ethernet and serial communication, secure power connector , I/O ports, and time synchronization services.
TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces. A wide range of software features such as SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely. Dual SIM functionality with auto failover and a backup WAN ensure stable connectivity even if the primary connection is lost.

• Connectivity - 4G/LTE (Cat 4), 3G, 2G
• Dual SIM - with auto failover, backup WAN, and other switching scenarios
• Serial ports - RS232/RS485 serial communication interfaces
• 9-30V - wide range of supported power supply voltages< /li>
• I/O - multiple inputs and outputs for remote monitoring and control
• GNSS - Global Navigation Satellite System for location services with geofencing functionality

General

Forwarding rate

150 Mpps

Management protocols

SNMP

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned)

Ethernet LAN data rates

10,100 Mbit/s

Networking standards

IEEE 802.3,IEEE 802.3u

Console port

RS-232

Serial interface type

RS-232/485

Width

83 mm

Depth

25 mm

Height

74 mm
