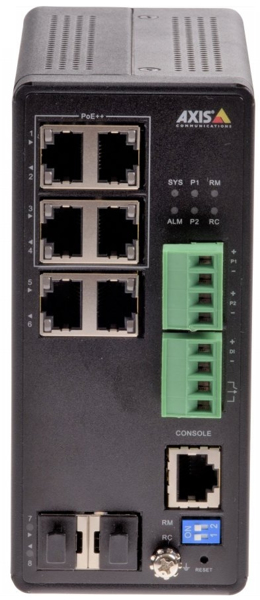

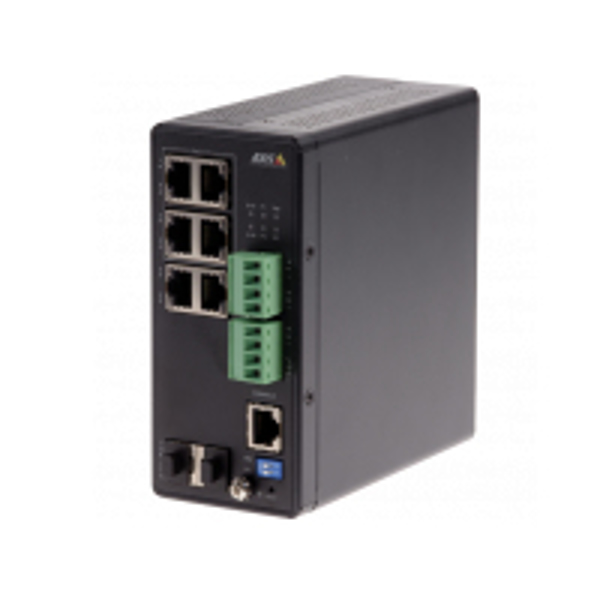

<a href="https://www.axis.com/" style="display: block;">https://www.axis.com/</a><br><br>AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 ┬░C to 75 ┬░C (-40 ┬░F to 167 ┬░F), making it perfect for high demanding installations such as alongside highways and tunnels.<br><br><ul><li>60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant</li></ul>
Axis T8504-R. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1x. DC input voltage: 54 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
| Estimate Gross Weight | 1.06 |
|---|
General
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
4
Console port
RJ-45
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Networking standards
IEEE 802.1Q,IEEE 802.1x
DC input voltage
54 - 57 V
Power connector
DC-in jack
Power over Ethernet (PoE)
Y
