<a href="https://www.alliedtelesis.com/en/products/ie340-20gp" style="display: block;">https://www.alliedtelesis.com/en/products/ie340-20gp</a><br><br><b>Industrial Ethernet Layer 3 Switches</b><br>Allied Telesis ruggedized IE340 Industrial Ethernet switches provide enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features, IE340 switches deliver the performance and reliability demanded by deployments in the age of the Internet of Things (IoT).<br><br><b>Overview</b><br>Allied Telesis IE340 Series are a high-performing and feature-rich choice for todayΓÇÖs networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation (Telco & Signaling), roadway transportation (Traffic Control) and Smart Cities.<br><br>With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments.<br><br>Modbus/TCP enables integration with existing factory management tools, and provides real-time automation in modular control and distributed systems.<br><br><b>Network management</b><br>Allied Telesis Autonomous Management FrameworkΓäó (AMF) meets the increasing management requirements of todayΓÇÖs modern converged networks, by automating many everyday tasks such as configuration management. AMFΓÇÖs powerful features allow an entire network to be easily managed as a single virtual device.<br><br>Vista ManagerΓäó EX is an intuitive visualization tool that complements the power of AMF. It allows users to monitor the network and quickly identify issues before they become major problems.<br><br><b>Securing the network edge</b><br>Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network.<br><br>Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data.<br><br><b>Gigabit and Fast Ethernet</b><br>The IE340 Series SFP ports support both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs)(1). This makes the IE340 Series ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies.<br><br><b>Network resiliency</b><br>The IE340 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IE340 can be customized with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRingΓäó), and the standards-based ITU-T G.8032.<br><br><b>Configurable PoE power budget and dynamic power allocation</b><br>On PoE-sourcing IE340 switches, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)(2). PoE power is allocated dynamically, based on the current usage of each powered device.<br><br><b>Future-proof</b><br>The IE340 Series ensures a future-proof network with a comprehensive feature set, and is Software Defined Networking (SDN) ready, supporting OpenFlow v1.3.<br><br><ul><li>40Gbps switch fabric and 29.7Mpps forwarding packet rate</li><li>16K MAC addresses</li><li>4K VLANs</li><li>9KB jumbo frame size</li><li>8 QoS priority queues</li><li>511 (Layer 2), 256 (Layer 3) Multicast groups</li><li>IEEE 802.3at PoE+ sourcing (30W)</li><li>240W PoE power budget</li><li>Alarm input and output ports</li></ul>

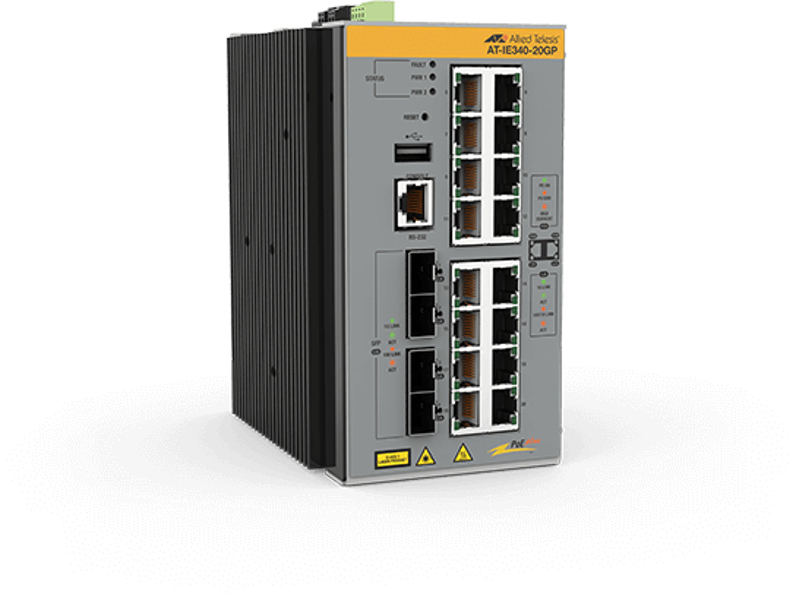

Allied Telesis AT-IE340-20GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 1588,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1ag,IEEE.... DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Wall mountable
A comprehensive feature set, and built-in security, make the Allied Telesis AT IE340-20GP ideal for high-density industrial environments.
| Estimate Gross Weight | 5.255 |
|---|
General
Switch type
Managed
Switch layer
L3
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
16
USB 2.0 ports quantity
1
Console port
RJ-45
Full duplex
Y
MAC address table
16000 entries
Switching capacity
40 Gbit/s
Networking standards
IEEE 1588,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
DC input voltage
18 - 57 V
Power over Ethernet (PoE)
Y
Wall mountable
Y
