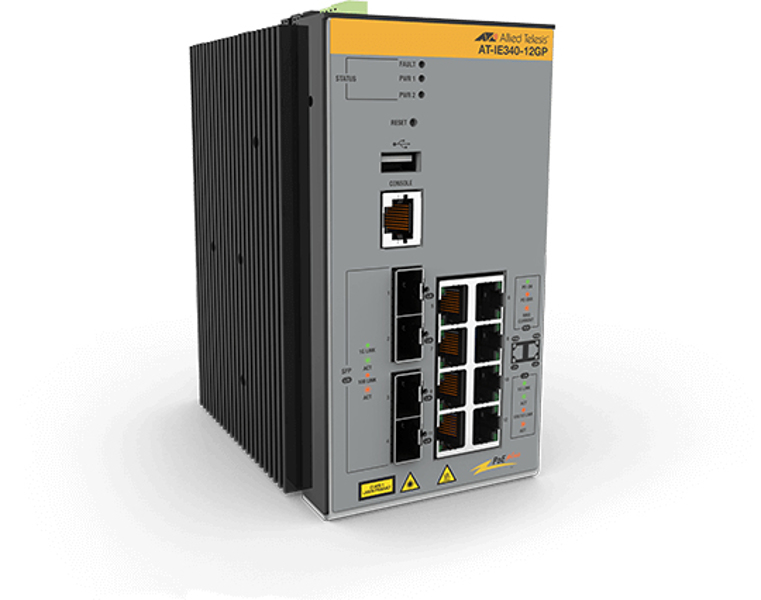

Allied Telesis AT-IE340-12GP-80 - Switch L3 Managed

<a href="https://www.alliedtelesis.com/en/products/ie340-12gp" style="display: block;">https://www.alliedtelesis.com/en/products/ie340-12gp</a><br><br><b>Industrial Ethernet Layer 3 Switches</b><br>Allied Telesis ruggedized IE340 Industrial Ethernet switches provide enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features, IE340 switches deliver the performance and reliability demanded by deployments in the age of the Internet of Things (IoT).<br><br><b>Overview</b><br>Allied Telesis IE340 Series are a high-performing and feature-rich choice for todayΓÇÖs networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation (Telco & Signaling), roadway transportation (Traffic Control) and Smart Cities.<br><br>With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments.<br><br>Modbus/TCP enables integration with existing factory management tools, and provides real-time automation in modular control and distributed systems.<br><br><b>Network management</b><br>Allied Telesis Autonomous Management FrameworkΓäó (AMF) meets the increasing management requirements of todayΓÇÖs modern converged networks, by automating many everyday tasks such as configuration management. AMFΓÇÖs powerful features allow an entire network to be easily managed as a single virtual device.<br><br>Vista ManagerΓäó EX is an intuitive visualization tool that complements the power of AMF. It allows users to monitor the network and quickly identify issues before they become major problems.<br><br><b>Securing the network edge</b><br>Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network.<br><br>Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data.<br><br><b>Gigabit and Fast Ethernet</b><br>The IE340 Series SFP ports support both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs)(1). This makes the IE340 Series ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies.<br><br><b>Network resiliency</b><br>The IE340 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IE340 can be customized with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRingΓäó), and the standards-based ITU-T G.8032.<br><br><b>Configurable PoE power budget and dynamic power allocation</b><br>On PoE-sourcing IE340 switches, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)(2). PoE power is allocated dynamically, based on the current usage of each powered device.<br><br><b>Future-proof</b><br>The IE340 Series ensures a future-proof network with a comprehensive feature set, and is Software Defined Networking (SDN) ready, supporting OpenFlow v1.3.<br><br>

Allied Telesis AT-IE340-12GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1ag,IEEE.... DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Wall mountable

Allied Telesis IE340 is a high-performing and feature-rich choice for the networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation, roadway transportation and smart cities. With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments.

• Securing the network edge
  Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data.
• Gigabit and fast Ethernet
  The IE340 SFP ports support both Gigabit and fast Ethernet small form-factor pluggables (SFPs). This makes the IE340 ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies.
• Configurable PoE power budget and dynamic power allocation
  On PoE-sourcing IE340, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external power supply unit (PSU). PoE power is allocated dynamically, based on the current usage of each powered device.
• Quality of service (QoS)
  Comprehensive low-latency wire-speed QoS provides flow-based traffic management with full classification, prioritization, traffic shaping and min / max bandwidth profiles. Enjoy boosted network performance and guaranteed delivery of business-critical Ethernet services and applications. Time-critical services like voice and video applications take precedence over non-essential services like file downloads, maintaining responsiveness of Enterprise applications.
• Dynamic Host Configuration Protocol (DHCP) snooping
  DHCP servers allocate IP addresses to clients, and the switch keeps a record of addresses issued on each port. IP source guard checks against this DHCP snooping database to ensure only clients with specific IP can access the network.
• Power over Ethernet plus (PoE+)
  With PoE, a separate power connection to media endpoints such as IP phones and wireless access points is not necessary. PoE+ reduces costs and provides even greater flexibility, providing the capability to connect devices requiring more power such as pan, tilt and zoom security cameras.
• Alarm input / output
  Alarm input and alarm output are useful for security integration solutions. These respond to events instantly and automatically on a pre-defined event scheme, and send an alert message to the monitoring control center. The 2-pin terminal blocks may be connected to sensors and actuator relays. Alarm input receives signals from external devices like motion sensors and magnets that will trigger subsequent actions if something changes. Alarm output controls external devices upon an event, for example sirens, strobes and PTZ cameras.

General

Switch type

Managed

Switch layer

L3

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

8

USB 2.0 ports quantity

1

Console port

RJ-45

Full duplex

Y

MAC address table

16000 entries

Switching capacity

24 Gbit/s

Networking standards

IEEE 1588,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

DC input voltage

18 - 57 V

Power over Ethernet (PoE)

Y

Wall mountable

Y
