Module de connexion DIGITUS Cat7

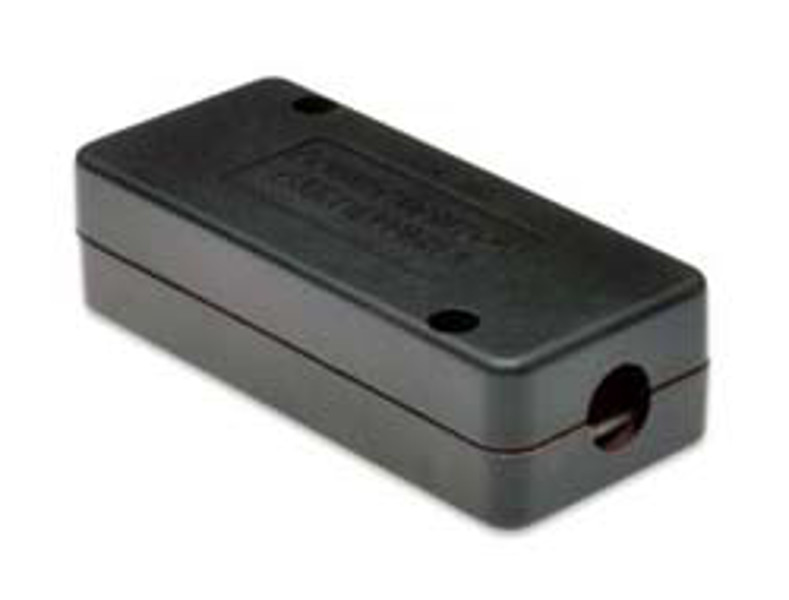

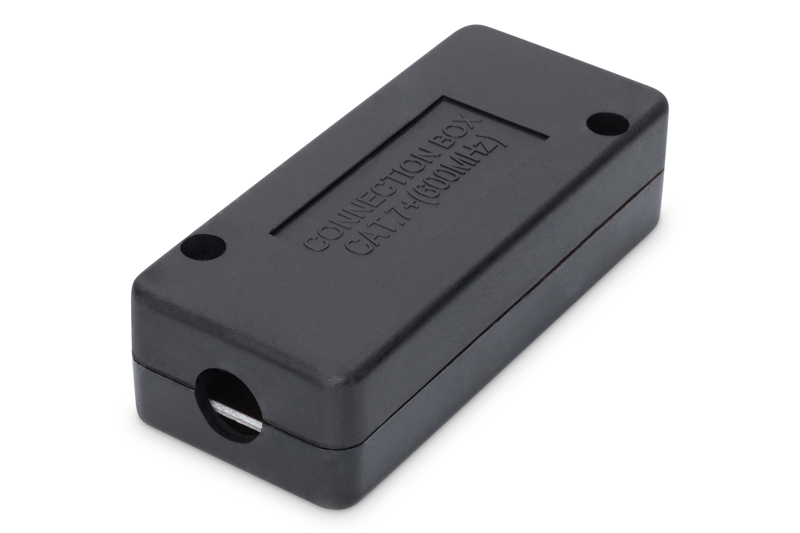

<a href="https://de.assmann.shop/ean.php?ean=4016032363590&amp;lang=en" style="display: block;">https://de.assmann.shop/ean.php?ean=4016032363590&amp;lang=en</a><br><br>The DIGITUS® Junction Box CAT 7 serves as a tool for connecting of shielded data cables. Use the Junction Box for an extension of your cabling or to replace broken cables by re-connecting without installing a whole new segment. For an easy and fast installation, the cable connector uses the established LSA technique with 45° tilt of the contacts.<br><br><ul><li>Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+</li><li>RJ45 female material: ABS UL 94V-0</li><li>RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact</li><li>RJ45 shielding: Tinned bronze</li><li>LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze</li><li>Conductor plate: FR4, UL 94V-0</li><li>Physical properties:</li><li>Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)</li><li>Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>IDC wire size: 22 – 26 AWG solid and stranded conductor</li><li>Insulation resistance: > 500 MOhm</li><li>General properties:</li><li>Contact resistance: < 20 MilliOhm</li><li>Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)</li><li>Suitable for installation in trunking, surface and flush mount</li><li>Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B</li><li>Suitable for connection of installation cables - extension of cables, replacing of defect cable links</li><li>Integrated strain relief for installation cables</li><li>Suitable for cables with AWG 22-26 diameter</li><li>Technical properties:</li><li>Housing material: ABS UL-94V-0</li></ul>
