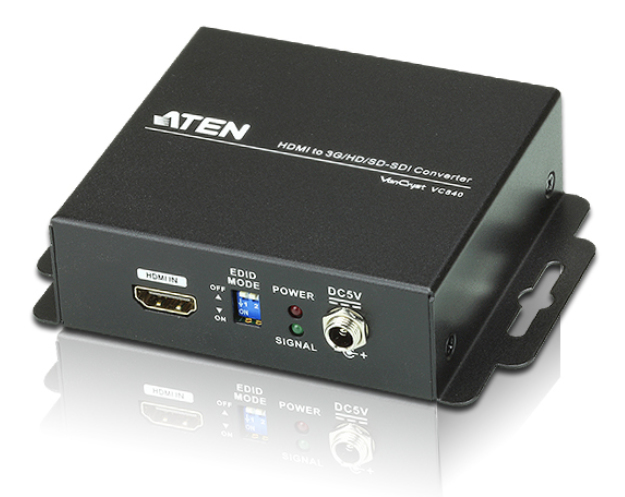

ATEN VC840 - Convertisseur vidéo - HDMI

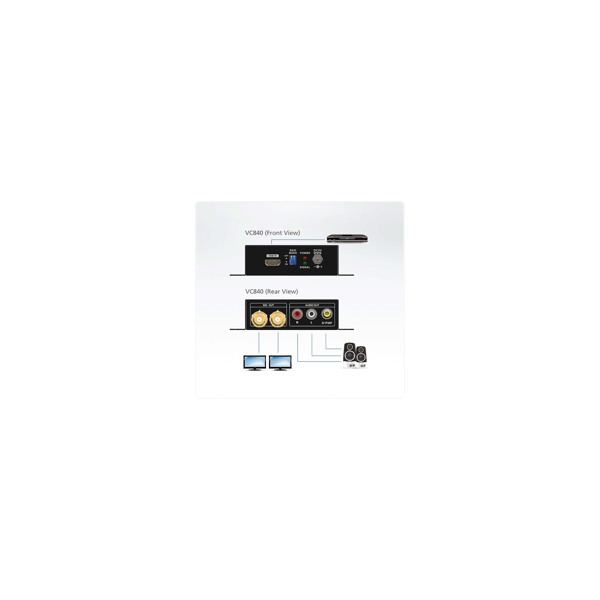

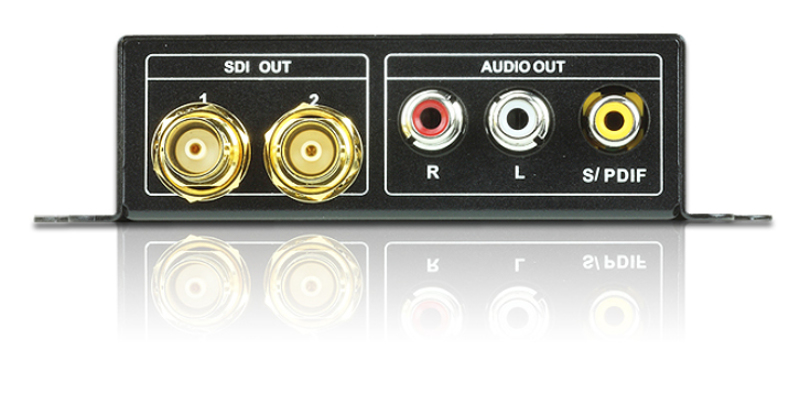

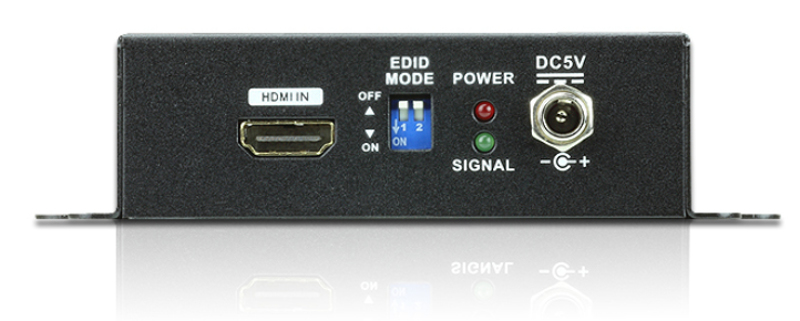

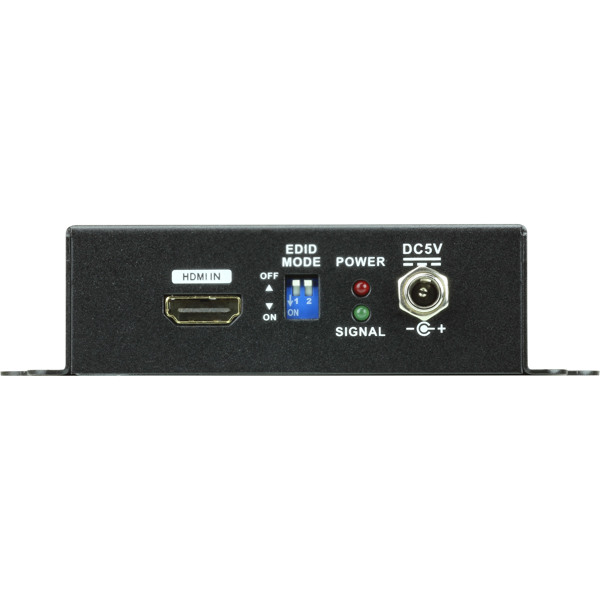

<a href="https://www.efb-elektronik.de/productRedirect/VC-840" style="display: block;">https://www.efb-elektronik.de/productRedirect/VC-840</a><br><br>The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.<br><br>- Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals<br>- Supports additional analog stereo audio and coaxial digital audio<br>- HDMI (Deep Color)<br>- LED indication of power and signal status<br>- Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6<br>- Supported SDI formats:<br>- SD-SDI (SMPTE 259M, up to 270Mbps)<br>- HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)<br>- 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)<br>- Video Support:<br>- 525i@59.96, 625i@50<br>- 720p@50/59.94/60<br>- 1080i@50/59.94/60<br>- 1080p@23.97/24/25/29.97/30/50/59.94/60<br>- 2048 x 1080<br>- Supports 8 audio channels @ 48kHz rate<br>- Offers 2 low-jitter SDI outputs for dual display<br>- Features automatic detection of 3G/HD/SD-SDI signals<br>- Reclocking SDI signals for cascading and thus longer transmission<br>- Locking power connector for secure communications<br>- Selectable EDID settings and EDID learning mode<br><br>
