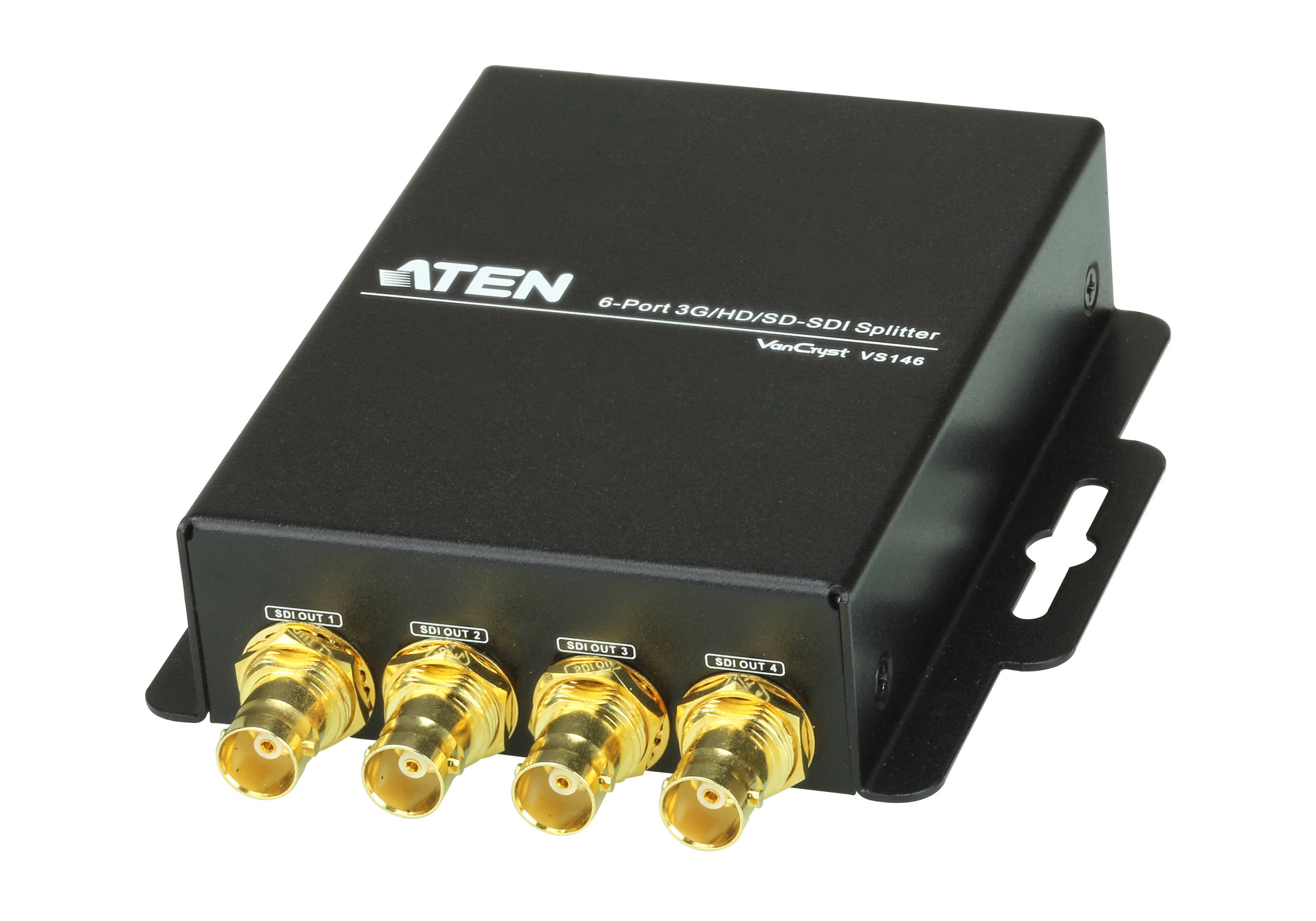

<a href="https://www.aten.com/global/en/products/professional-audiovideo/video-splitters/vs146/" style="display: block;">https://www.aten.com/global/en/products/professional-audiovideo/video-splitters/vs146/</a><br><br>The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.<br><br><ul><li>One video inputs to 6 video outputs</li><li>LED indication of power status and SDI signal</li><li>Locking power connector for secure communications</li><li>Passes all ancillary data</li><li>Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6</li><li>Reclocking SDI signals for cascading and thus longer transmission</li><li>Supported SDI formats:</li><li>• SD-SDI (SMPTE 259M, up to 270Mbps)</li><li>• HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)</li><li>• 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)</li><li>Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps</li><li>Features automatic detection of 3G/HD/SD-SDI signals</li></ul>
ATHENS VS146. Type de port vidéo : BNC, Sortie vidéo : 6 BNC, Entrée vidéo : 1 BNC. Couleur : noir, Matériau du boîtier : métal, Distance de fonctionnement maximale : 300 m. Tension d’entrée CA : 5 V, Consommation électrique (typique) : 10 W. Dimensions (l x P x H) : 80 x 145 x 25 mm, Poids : 310 g. Contenu de l’emballage : adaptateur secteur.| Estimate Gross Weight | 0.611 |
|---|
