ValueRAM - DDR4 - 8 GB

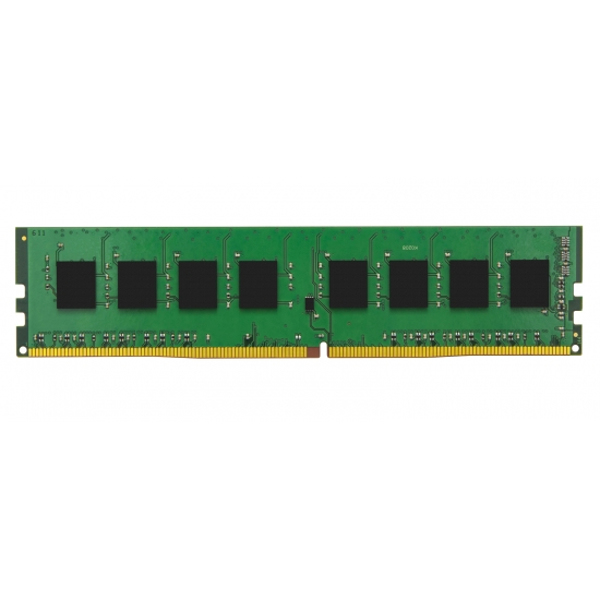

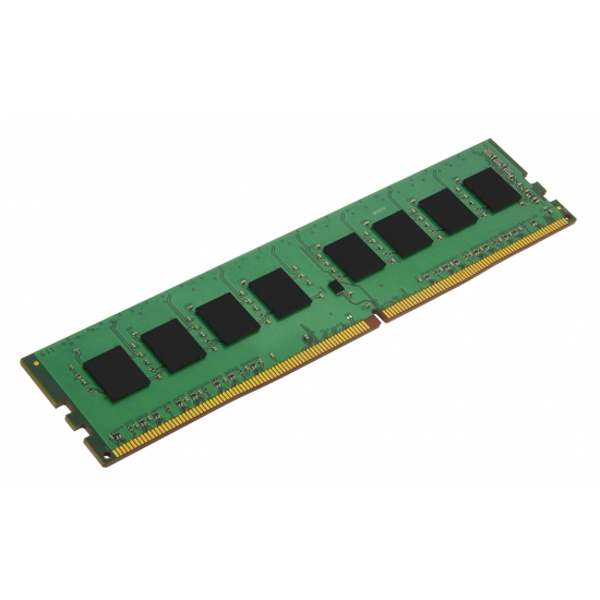

<a href="https://www.kingston.com/en/memory/valueram/desktop" style="display: block;">https://www.kingston.com/en/memory/valueram/desktop</a><br><br>This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of <br>19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:<br><br><br><br><ul><li>Power Supply: VDD=1.2V Typical</li><li>Single-rank</li><li>On-board I2 serial presence-detect (SPD) EEPROM</li><li>16 internal banks; 4 groups of 4 banks each</li><li>Fixed burst chop (BC) of 4 and burst length (BL) of 8</li><li>via the mode register set (MRS)</li><li>Selectable BC4 or BL8 on-the-fly (OTF)</li><li>Fly-by topology</li><li>Terminated control command and address bus</li><li>PCB: Height 1.23ΓÇ¥ (31.25mm)</li><li>RoHS Compliant and Halogen-Free</li><li>VDDQ = 1.2V Typical</li><li>VPP - 2.5V Typical</li><li>VDDSPD=2.2V to 3.6V</li><li>Nominal and dynamic on-die termination (ODT) for</li><li>data, strobe, and mask signals</li><li>Low-power auto self refresh (LPASR)</li><li>Data bus inversion (DBI) for data bus</li><li>On-die VREFDQ generation and calibration</li></ul>

Kingston Technology ValueRAM 8GB DDR4 2666MHz. Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 288-pin DIMM, CAS latency: 19, Product colour: Green
