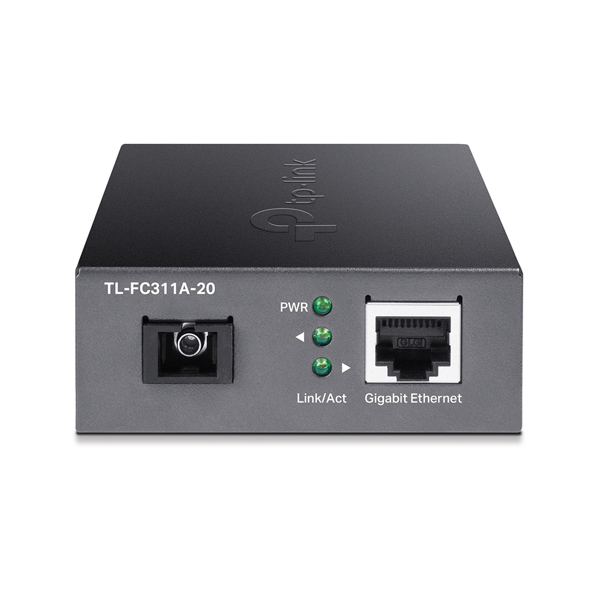

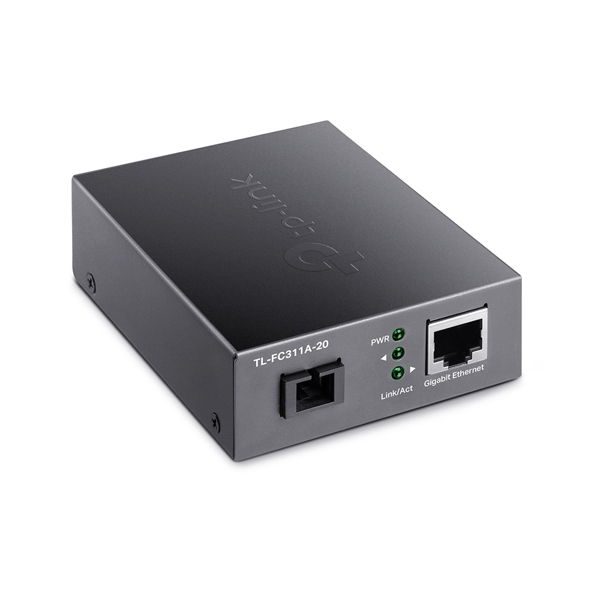

<a href="https://www.tp-link.com/uk/service-provider/switch-accessory/tl-fc311a-20/" style="display: block;">https://www.tp-link.com/uk/service-provider/switch-accessory/tl-fc311a-20/</a><br><br><b>What This Product Does</b><br> TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.<br><br><b>How This Product Works</b><br> TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.<br><br>- Other Features<br>Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.<br><br><ul><li>1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX</li><li>Auto-negotiation of Half-Duplex/Full-Duplex transfer mode</li><li>Adopts WDM technology, transmitting and receiving data on one single fiber</li><li>Extends fiber distance up to 20 km</li></ul>
TP-LINK Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 100 m, Wavelength: 1550 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Output voltage: 5 V, Output current: 0.6 A
| Estimate Gross Weight | 0.368 |
|---|
General
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Fiber optic connector
SC
Connectivity technology
Wired
Maximum transfer distance
100 m
Wavelength
1550 nm
Fiber mode structure
Single-mode
LED indicators
Activity, Link, Power
Product colour
Black

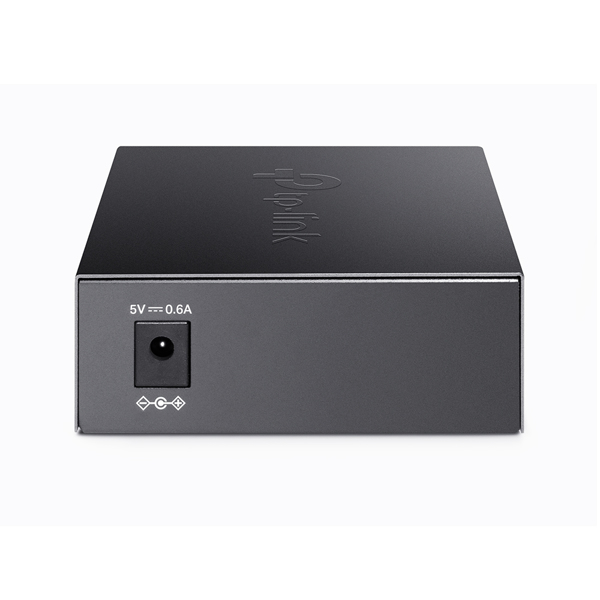

Output voltage
5 V
Output current
0.6 A
