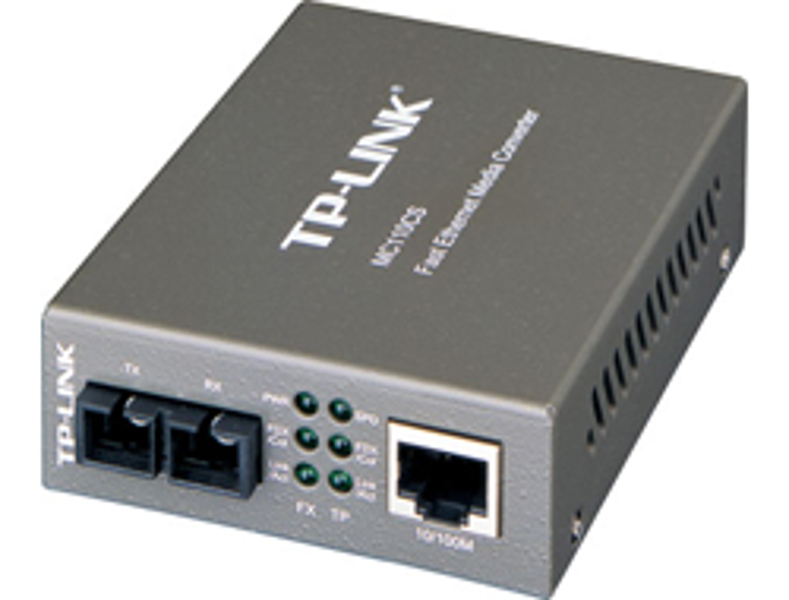

<a href="https://www.tp-link.com/us/business-networking/accessory/mc110cs/#overview" style="display: block;">https://www.tp-link.com/us/business-networking/accessory/mc110cs/#overview</a><br><br>The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).<br><br><ul><li>Complies with 802.3u 10/100Base-TX, 100Base-FX standards</li><li>Auto-negotiation of Half-Duplex / Full-Duplex transfer mode</li><li>Extends fiber distance up to 12.5 miles (20km)</li></ul>
TP-LINK MC110CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 12500 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black. Power consumption (max): 2.4 W
| Estimate Gross Weight | 0.386 |
|---|
General
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Ethernet LAN data rates
10,100 Mbit/s
Fiber optic connector
SC
Connectivity technology
Wired
Maximum transfer distance
12500 m
Wavelength
1310 nm
Fiber mode structure
Single-mode
Product colour
Black
Power consumption (max)
2.4 W
