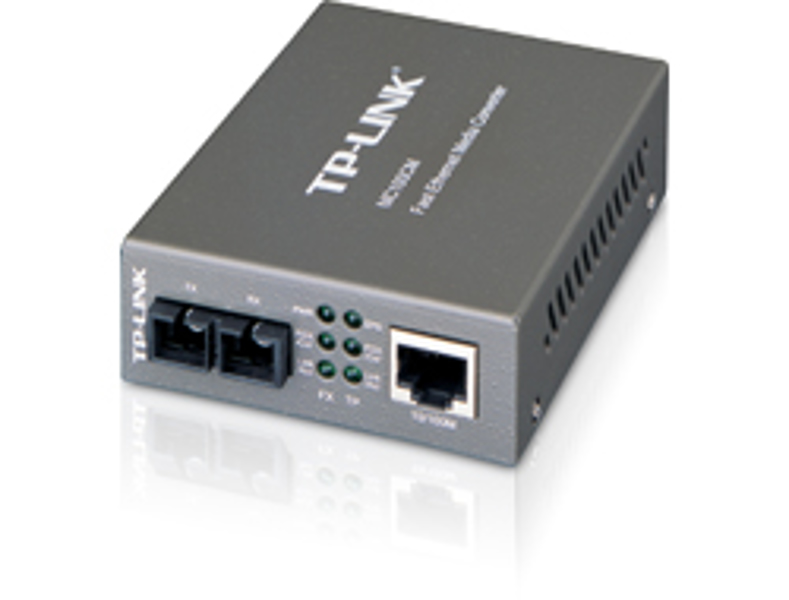

<a href="https://www.tp-link.com/us/business-networking/accessory/mc100cm/#overview" style="display: block;">https://www.tp-link.com/us/business-networking/accessory/mc100cm/#overview</a><br><br>The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).<br><br><ul><li>Complies with 802.3u 10/100Base-TX, 100Base-FX standards</li><li>Auto-negotiation of Half-Duplex / Full-Duplex transfer mode</li><li>Extends fiber distance up to 1.2 miles (2km)</li></ul>
TP-LINK MC100CM. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. Product colour: Black. Power consumption (max): 2.4 W
| Estimate Gross Weight | 0.386 |
|---|
General
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Ethernet LAN data rates
10,100 Mbit/s
Fiber optic connector
SC
Connectivity technology
Wired
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Product colour
Black
Power consumption (max)
2.4 W
