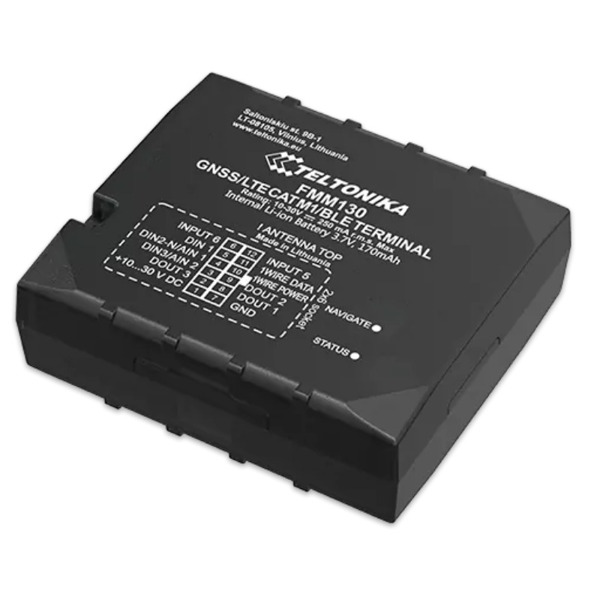

Teltonika FMM130 - Advanced CAT M1/GSM/GNSS/BLE Terminal, FMM130 - Advanced CAT M1/GSM/GNSS/BLE Terminal
FMM130 is a small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and battery backup. The device is equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative inputs and pulse inputs. It is ideal for applications where remote object location detection is required: fleet management, car rental companies, taxi companies, public transport, logistics companies, passenger cars, etc.
module
-> Name: Quectel BG96, Teltonika TM2500
-> Technology: LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH
GNSS
-> GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
-> Recipient tracking: 33
-> Tracking sensitivity: -165 dBM
-> Accuracy: Hot start: Warm start: Cold start: <35 s
cellular
-> Technology: LTE CAT M1/NB-IoT/GSM
-> 2G bands: B2/B3/B5/B8
-> 4G bands: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28; LTE TDD: B39 (only for CAT M1)
-> Data transmission: LTE: max. 375 Kbit/s (DL)/max. 375 kbps (UL); GPRS: max. 85.6 kbit/s (DL)/max. 85.6 kbps (UL)
-> Data support: SMS (text/data)
power supply
-> Input voltage range 10 - 30 V DC with overvoltage protection
-> Buffer battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
interface
-> Digital inputs: 3
-> Negative inputs: 1 (digital input 2)
-> Pulse inputs: 2 (digital input 1, digital input 2)
-> Digital outputs: 3
-> Analog inputs: 2
-> CAN adapter inputs: 1
-> 1 wire: 1
-> Internal high reception GNSS antenna
-> Internal high-reception LTE CAT M1 mobile antenna
-> USB: 2.0 Micro USB
-> LED display: 2 status LEDs
-> SIM: Micro SIM + eSIM
-> Memory: 128 MB internal flash memory
Physical Specification
-> Dimensions 65 x 56.6 x 20.6 mm (L x W x H)
-> Weight 55g
operating environment
-> Operating temperature (without battery): -40°C to +85°C
-> Storage temperature (without battery): -40°C to +85°C
-> Operating Humidity: 5% to 95% non-condensing
-> Degree of protection: IP41
-> Battery charging temperature: 0°C to +45°C
-> Battery discharge temperature: -20°C to +60°C
-> Battery storage temperature: -20°C to +45°C for 1 month; -20°C to +35°C for 6 months
Characteristics
-> Sensors: Accelerometer
-> Scenarios: Green Driving, Overspeed Detection, Stall Detection, GNSS Fuel Meter, DOUT Control via Call, Excessive Idle Detection, Immobilizer, iButton Read Receipt, Socket Detection, Tow Detection, Crash Detection, Auto Geofence, Manual Geofence, Trip
-> Sleep modes: GPS sleep, online deep sleep, deep sleep, ultra deep sleep
-> Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (configuration)
-> SMS: configuration, events, DOUT control, debugging
-> GPRS commands: configuration, DOUT control, debugging
-> Time synchronization: GNSS, NITZ, NTP
-> Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle
-> Ignition detection: digital input 1, accelerometer, external voltage, engine speed (CAN adapter, OBDII dongle)
|
