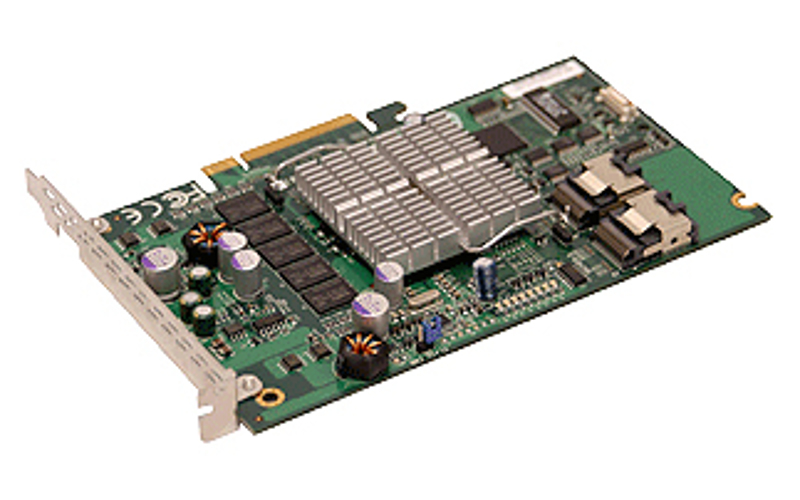

<a href="https://www.supermicro.com/products/accessories/addon/AOC-USAS-S8i_R.cfm" style="display: block;">https://www.supermicro.com/products/accessories/addon/AOC-USAS-S8i_R.cfm</a><br><br>The Supermicro UIO AOC-USAS-S8i and AOC-USAS-S8iR feature 8 internal SAS ports for Power Efficiency, Performance, Flexibility, and Data Protection. With an integrated power-efficient, high-performance Intel® IOP348 I/O Processor, our AOC-USAS-S8i and AOC-USAS-S8iR RAID cards are storage system-on-a-card that deliver enterprise class SAS and IOP RAID with significant flexibility and interoperability.<br><br>These UIO RAID cards address the growing demand for increased data throughput and scalability requirement across the mid-range to enterprise-class server platforms. With the on board iButton, the AOC-USAS-S8iR supports RAID 5, 6 and 50 plus all the RAID levels that the AOC-USAS-S8i supports.<br><br>With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.<br><br><br><b>Key Features</b><br>- PCI-E SAS controller with Intel IOP348 processor<br>- 8-port (internal) 3Gb/s per port<br>- Supports RAID 0, 1, 10<br>- On board hardware IO Processor<br>- 128MB 533MHz DDR2 on-card cache<br>- Automatically negotiates PCI-E link widths<br>- Power management support<br>- Supports 1.5 and 3.0 Gb/s SAS and SATA data transfer rates<br>- Port independent auto-negotiation<br>- Supports SSP, SMP, STP and SATA protocols<br>- OS Support : Windows 2000/XP/2003, RedHat Enterprise and SUSE Linux<br><br>
Supermicro AOC-USAS-S8I. Interface hôte : PCIe, Interface de sortie : SAS. Couleur du produit : Vert, Certification : RoHS 6/6. Modèle de processeur : Intel IOP348. Profondeur : 167,6 mm, Hauteur : 111,3 mm. Taux de transfert de données : 3 Gbit/s, Technologie de connectivité : filaire, Systèmes d'exploitation compatibles : Windows 2000/XP/2003, RedHat Enterprise, SUSE Linux| Estimate Gross Weight | 1.21 |
|---|
