Kingston Server Premier - DDR4 - 8 GB

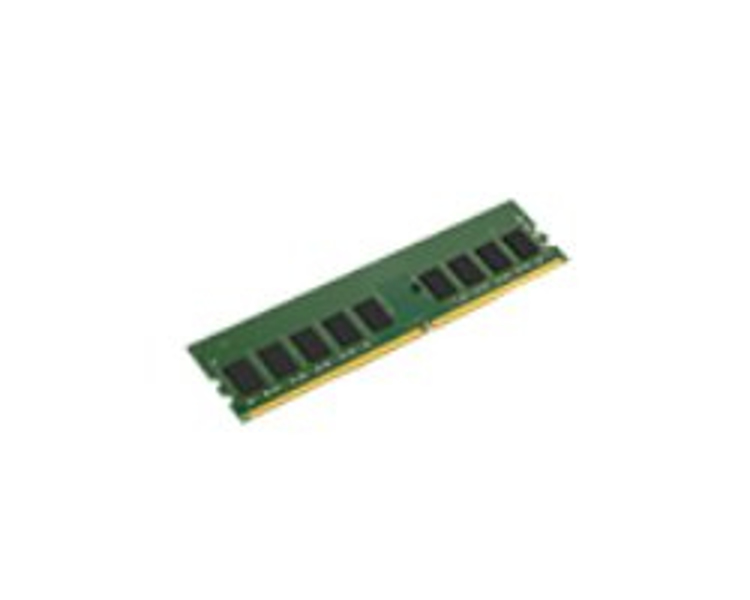

<a href="https://www.kingston.com/unitedkingdom/en/memory/search?partId=KSM32ES8%2F8HD" style="display: block;">https://www.kingston.com/unitedkingdom/en/memory/search?partId=KSM32ES8%2F8HD</a><br><br>Kingston's KSM32ES8/8HD is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.<br><br><ul><li>Power Supply: VDD = 1.2V Typical</li><li>On-board I2 serial presence-detect (SPD) EEPROM</li><li>Temperature sensor with integrated SPD</li><li>16 internal banks; 4 groups of 4 banks each</li><li>Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)</li><li>Selectable BC4 or BL8 on-the-fly (OTF)</li><li>Fly-by topology</li><li>Terminated control command and address bus</li><li>PCB: Height 1.23ΓÇ¥ (31.25mm)</li><li>RoHS Compliant and Halogen-Free</li><li>VDDQ = 1.2V Typical</li><li>VPP = 2.5V Typical</li><li>VDDSPD = 2.2V to 3.6V</li><li>Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals</li><li>Low-power auto self refresh (LPASR)</li><li>Data bus inversion (DBI) for data bus</li><li>On-die VREFDQ generation and calibration</li><li>Single-rank</li></ul>

Kingston Technology KSM32ES8/8HD. Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 3200 MHz, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC
