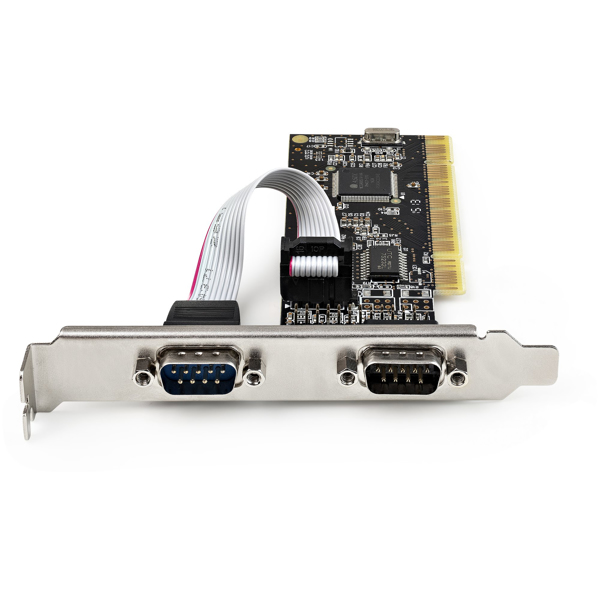

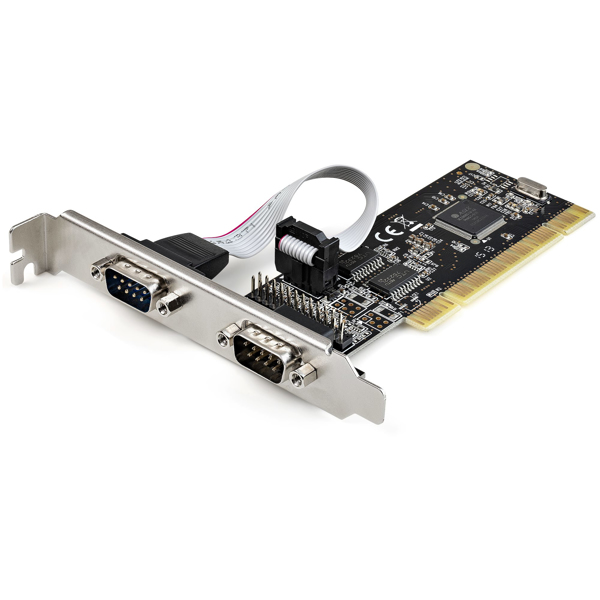

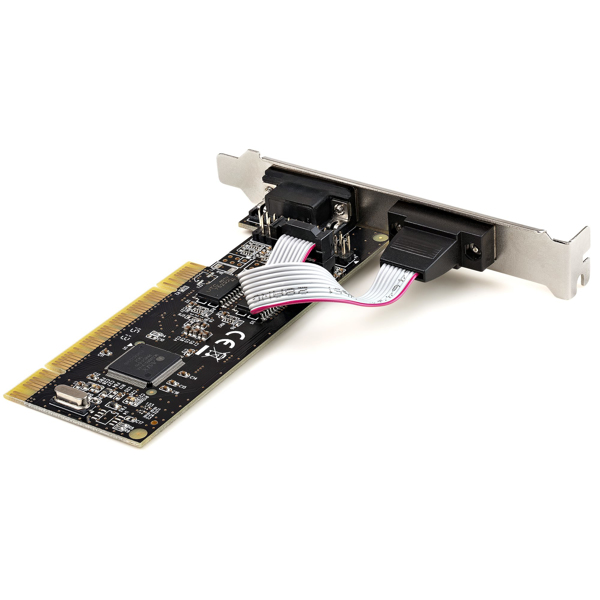

Carte PCI RS232 PCI vers 2 ports série DB9

Brand: StarTech.com SKU: PCI2S1P2
€61.66
Price as listed. Taxes calculated at checkout.
Low stock — only 1 left
Option
Part number: PCI2S1P2
EAN: 0065030891301
Availability: 1 in stock

Description

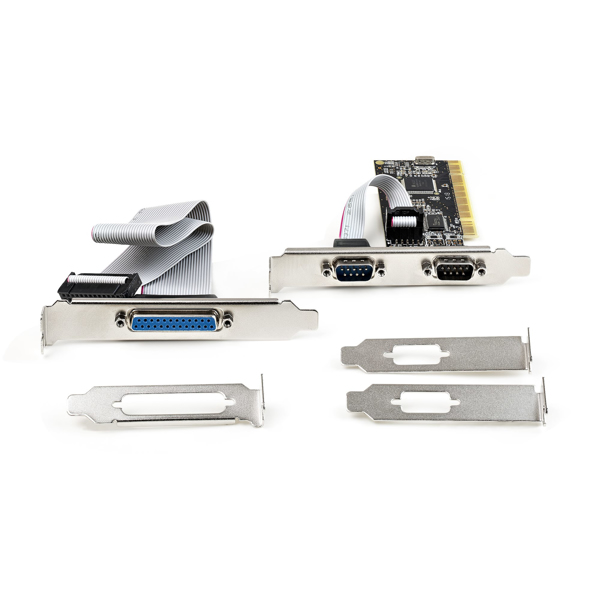

<a href="https://www.startech.com/en-us/PCI2S1P2" style="display: block;">https://www.startech.com/en-us/PCI2S1P2</a><br><br>PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime WarrantyThe StarTech.com Advantage<br><br><ul><li>PCI CARD WITH SERIAL & PARALLEL PORTS: Using one PCI bus, add a DB25 parallel & two DB9 RS232 ports to your computer; Serial Parallel PCI Card installs in 2x full profile or 3x low profile expansion slots; Auto IRQ & IO assignment; Supports IRQ Sharing</li><li>TECH SPECS: Parallel Speeds up to 1.5Mbps / Supports SPP/Byte/ECP/EPP modes / Compatible with IEEE 1284 / Asix MCS9865 chip / RS-232 speeds up to 115.2 Kbps / 16C550 UART / 256 byte FIFO buffer / 5-9 bit character / Even, Odd, No, Space or Mark Parity</li><li>VERSATILE APPLICATIONS: PCI expansion combo card adds LPT Printer & two COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope</li><li>STANDARD PROFILE & LOW PROFILE BRACKETs: PCI multiport Parallel LPT & dual serial COM adapter card installs using 2x standard bracket (pre-installed) or 3x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x</li><li>STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These 1-Port Parallel & 2-Port Serial port PCI controller card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support</li></ul>

StarTech.com Carte PCI combo série parallèle avec deux ports série RS232 (DB9) et un port parallèle LPT (DB25) - Carte adaptateur PCI combo - Contrôleur de carte d'extension PCI - Carte PCI vers imprimante. Interface hôte : PCI/PCI-X, Interface de sortie : Série, Format de la carte d'extension : Pleine hauteur / Profil bas. Couleur : Noir. Chipset : Asix - MCS9865, Taux de transfert de données (max.) : 0,0015 Gbit/s, Débit en bauds : 115,2 kbit/s. Systèmes d'exploitation Windows pris en charge : Windows 10, Windows 10 Éducation, Windows 10 Éducation x64, Windows 10 Entreprise, Windows 10..., Systèmes d'exploitation serveur pris en charge : Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Largeur : 21,6 mm, Profondeur : 134 mm, Hauteur : 120 millimètres.

Specifications

Estimate Gross Weight 0.19

Compatibility

General
Host interface
PCI/PCI-X
Output interface
Serial
Expansion card form factor
Full-height / Low-profile
Product colour
Black
Chipset
Asix - MCS9865
Data transfer rate (max)
0.0015 Gbit/s
Baud rate
115.2 Kbit/s
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Width
21.6 mm
Depth
134 mm
Height
120 mm
