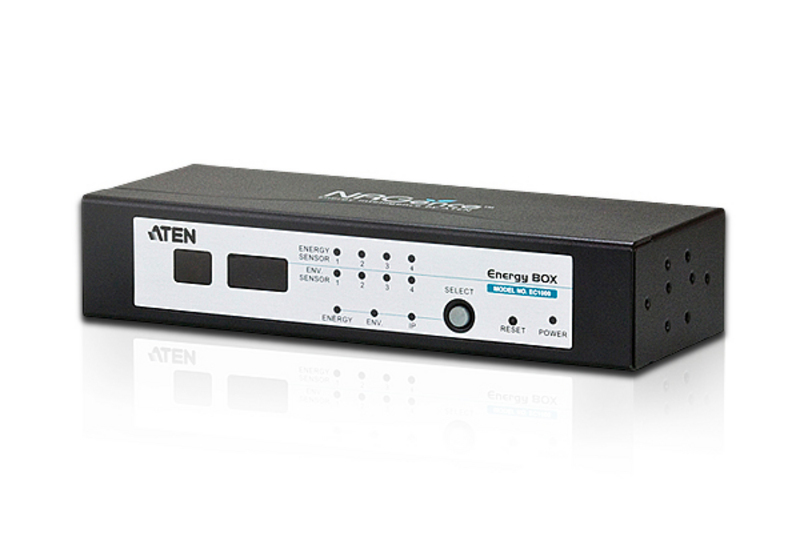

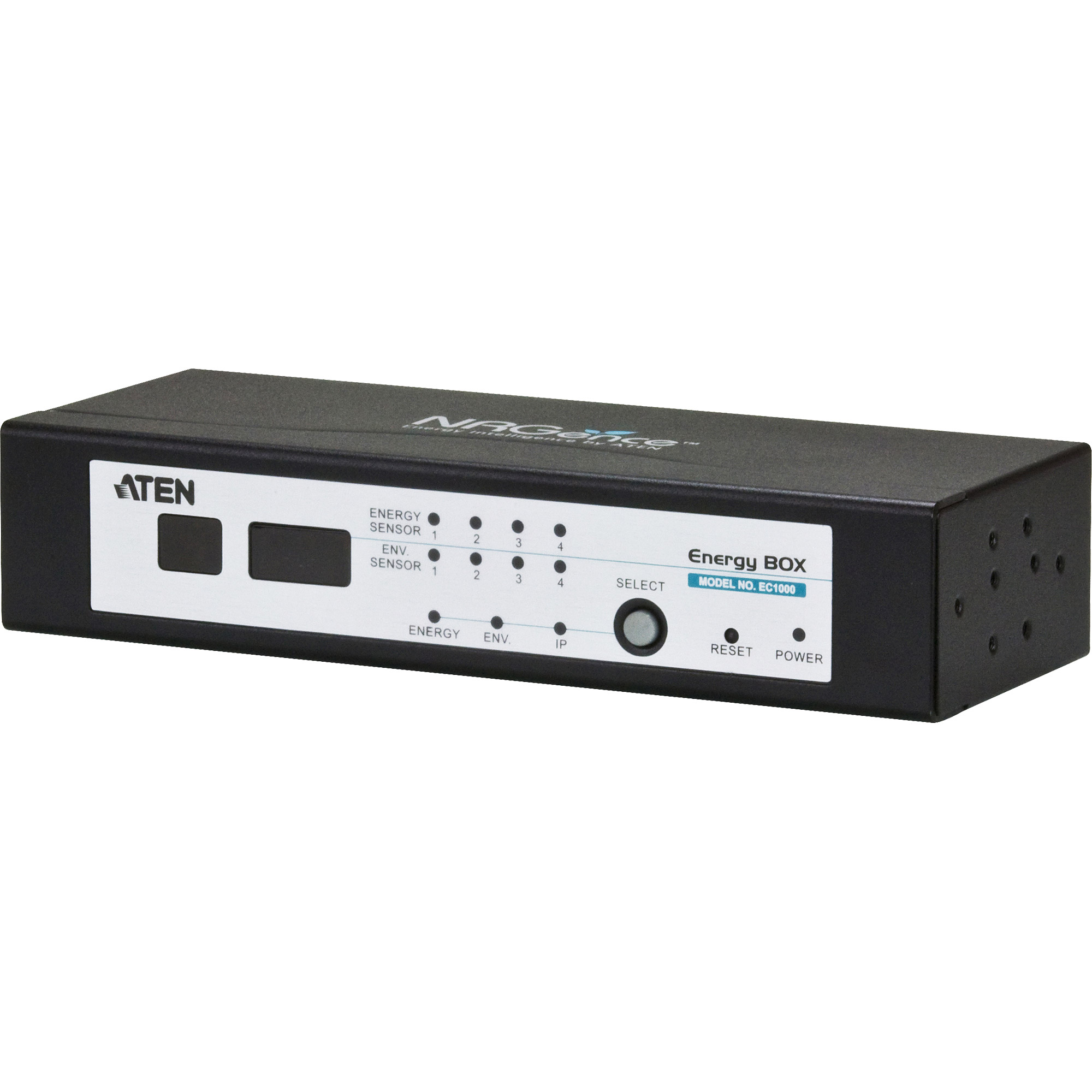

ATEN NRGence EC1000 - Unité de surveillance de puissance

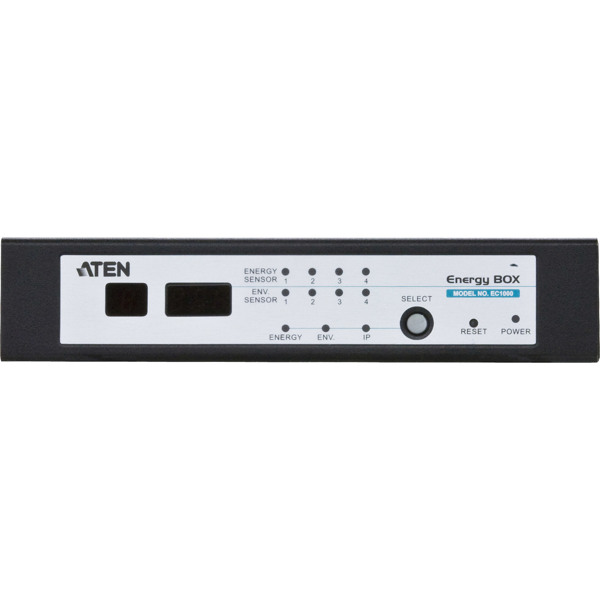

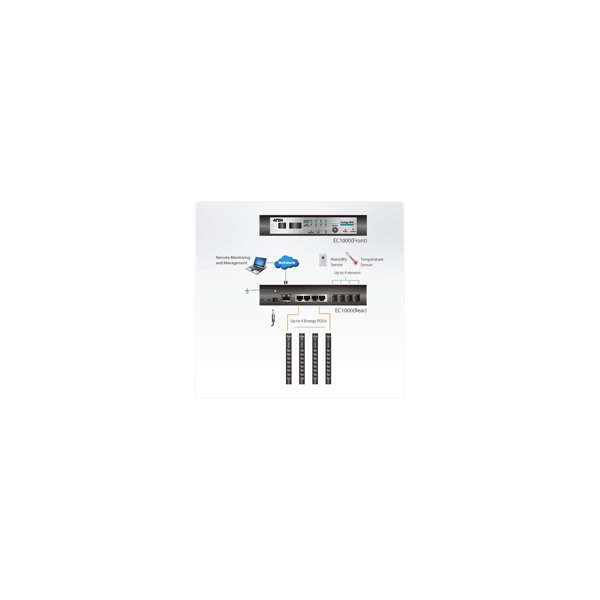

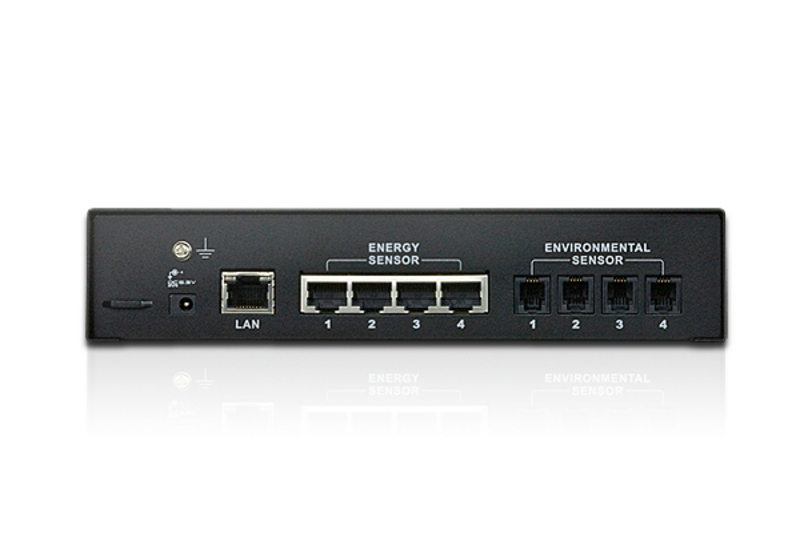

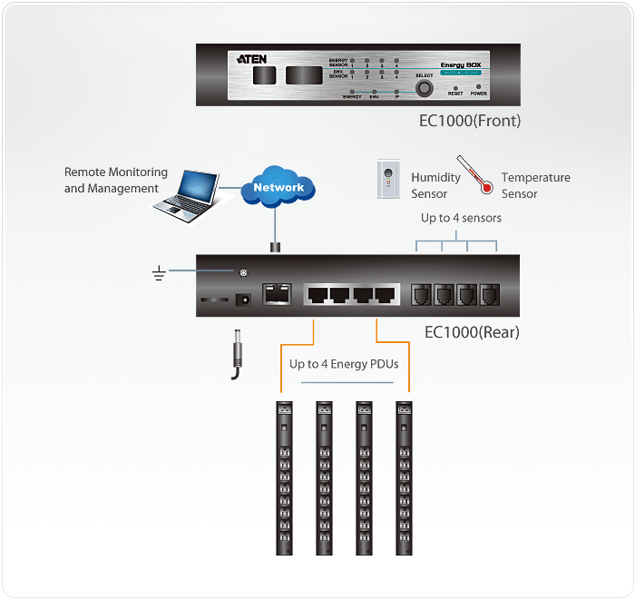

<a href="https://eng.aten.eu/products/productItem.php?model_no=EC1000" style="display: block;">https://eng.aten.eu/products/productItem.php?model_no=EC1000</a><br><br><b>Operation</b><br>- Space saving 1U rack mounting with front and rear mounting<br>- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)<br>- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*<br>- Maximum Amperage Monitor 32A@100V~240V (Energy Box)<br>- 3 digit 7 segment front panel LED displays current/sensor/IP address information<br>- Threshold monitoring for:<br>- 1.Current<br>- 2.Temperature<br>- 3.Humidity<br>- 4.Differential pressure<br>- Threshold alerting through:<br>- 1. Local: audible alarm and LED lights<br>- 2. Remote: SMTP/SNMP trap/Syslog<br><br><b>Management</b><br>- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box<br>- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management<br>- Management through eco Sensors Energy Management Software or 3r party SNMP manager<br>- Supports name assignment for individual Energy PDUs<br>- Event Logging – 128 line event log<br>- Syslog support<br>- F/W upgradable<br><br><b>Remote Access</b><br>- Remote management via TCP/IP using built in 10/100Mbps Ethernet port<br>- Management via built in browser based GUI<br>- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping<br>- Supports SNMP Manager V1, V2, V3<br><br><b>Security</b><br>- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL<br>- RADIUS authorization and authentication<br><br><b>Package Contents</b><br>- 1x EC1000 Energy Box<br>- 1x 0AD8-8605-24EG Power Adapter<br>- 1x Mounting Kit<br>- 4x RJ-45 Cables<br>- 1x CD ROM (Manual, eco Sensors Software)<br>- 1x User Instructions<br><br>
