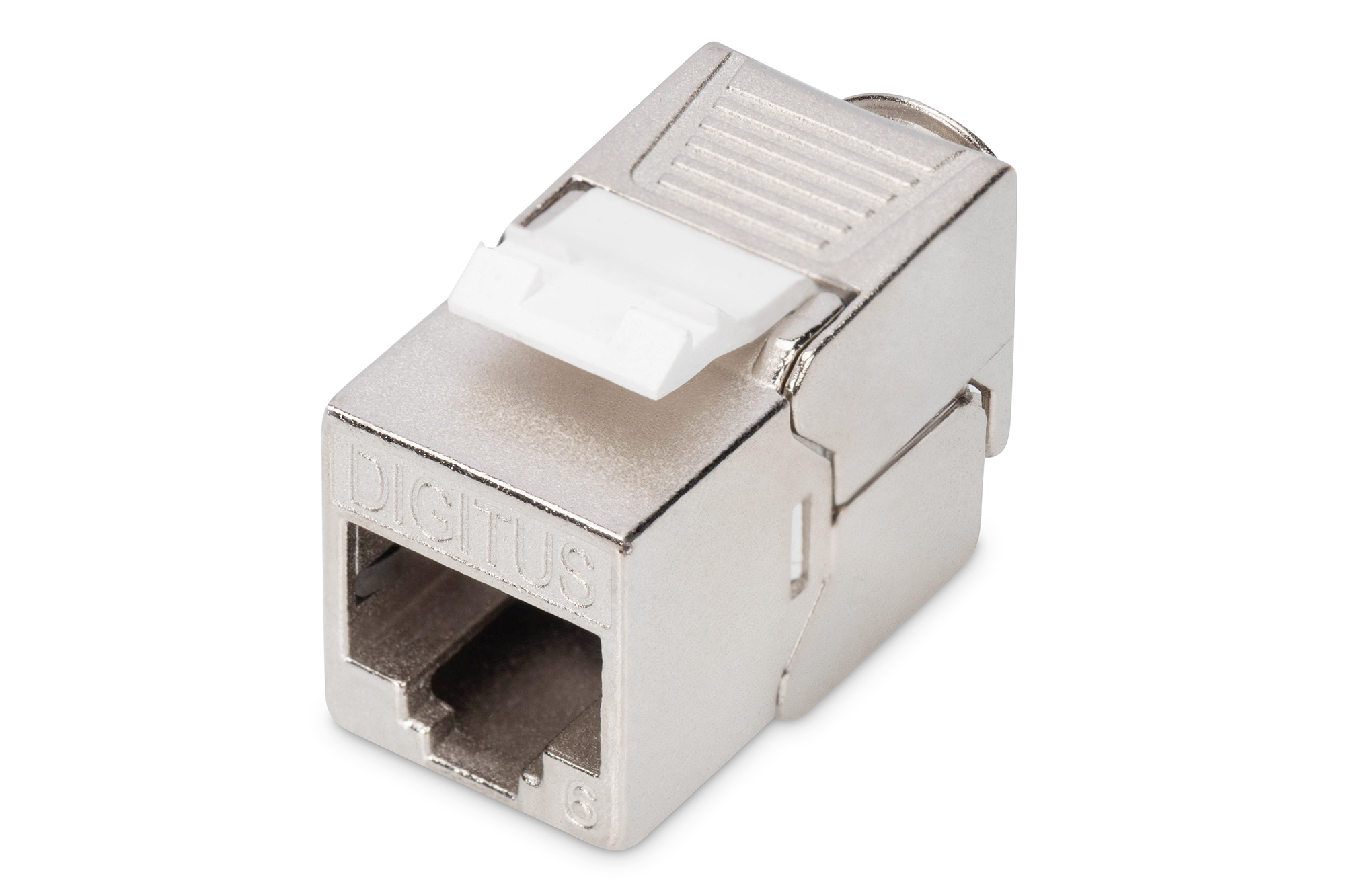

<a href="https://de.assmann.shop/ean.php?ean=4016032378518&lang=en" style="display: block;">https://de.assmann.shop/ean.php?ean=4016032378518&lang=en</a><br><br>The Item "DN-93612-1" of the brand DIGITUS® is a shielded CAT 6 Keystone Module with tool free installation which provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U panels. It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002, ISO/IEC 11801:2002.<br><br><ul><li>Transmission properties: Category 6, Class E</li><li>360° shield coverage</li><li>Technical properties:</li><li>Housing material: Zinc die-cast, nickel-plated</li><li>RJ45 female material: ABS UL 94V-0</li><li>RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact</li><li>RJ45 shielding: Tinned bronze</li><li>LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze</li><li>Conductor plate: FR4, UL 94V-0</li><li>Physical properties:</li><li>Insertion force: 30N max. (IEC 60603-7-5)</li><li>Area of application: Up to 250 MHz, 1GBase-T</li><li>Retention strength: 7.7 kg between jack and plug</li><li>Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)</li><li>Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>IDC wire size: 22 – 26 AWG solid and stranded conductor</li><li>Insulation resistance: > 500 MOhm</li><li>Contact resistance: < 20 MilliOhm</li><li>Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)</li><li>Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C</li><li>General properties:</li><li>Suitable for patch panels and mounting outlets</li><li>RJ45 female, 8P8C</li><li>Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B</li><li>Cable fixing with smart cable ties</li><li>Tool-free installation</li></ul>
Module Digitus CAT 6 Keystone, blindé. Type de construction: Plat, Couleur du produit: Argent, Connecteur 1: RJ-45. Largeur : 14 mm, Profondeur : 34 mm, Hauteur : 20 mm. Volume d'emballage: 12 cm³, Largeur d'emballage: 15 mm, Profondeur d'emballage: 40 mm. Quantité par paquet : 1 pièce. Pays d'origine : Chine
