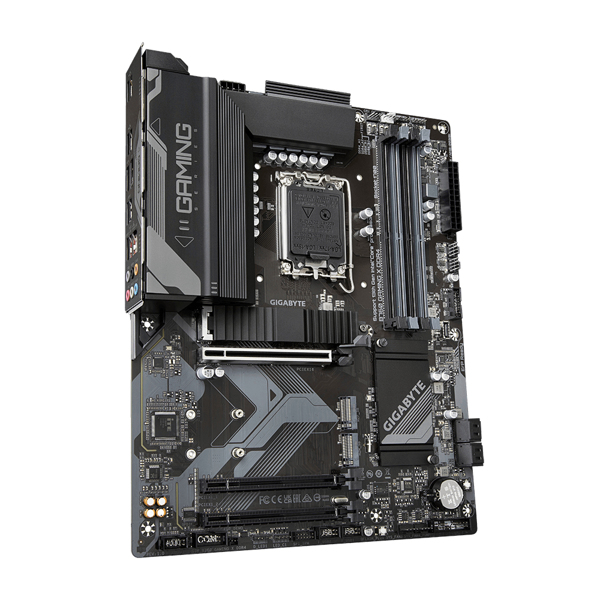

Gigabyte B760 GAMING X DDR4 - BGA 1170 - Intel® Celeron® - Intel® Pentium® Gold - DDR4-SDRAM - 128 Go - DIMM - Double canal

Carte mère Gigabyte B760 GAMING X DDR4 - Compatible avec les processeurs Intel Core 14e génération, VRM numérique 8+1+1 phases, DDR4 jusqu’à 5 333 MHz (OC), 3 x PCIe 4.0 M.2, LAN 2,5 GbE, USB 3.2 Gen 2. Socket processeur : LGA 1700, Séries de processeurs compatibles : Intel® Celeron®, Intel® Pentium® Gold, Sockets de processeur pris en charge : LGA 1700. Types de mémoire pris en charge : DDR4-SDRAM, Mémoire interne maximale : 128 Go, Types d’emplacements mémoire : DIMM. Interfaces de disque dur prises en charge : M.2, SATA III, Types de disques durs pris en charge : HDD et SSD, Niveaux RAID : 0, 1, 5, 10. Famille de cartes graphiques : Intel, Carte graphique : HD Graphics, Résolution maximale : 4096 x 2304 pixels. Type de connecteur USB : USB Type-A, USB Type-C.

Technical data

Processor



Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

Memory



Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Non-ECC

Y

Supported memory clock speeds

2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,
3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,
4500,4600,4700,4800,4933,5000,5133,5333 MHz

Maximum internal memory

128 GB

Unbuffered memory

Y

Features



Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760 Express

Audio output channels

7.1 channels

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Internal I/O



USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

4

S/PDIF out connector

Y

Audio connector

Y

Front panel audio connector

Y

Front panel connector

Y

ATX Power connector (24-pin)

Y

CPU fan connector

Y

Number of chassis fan connectors

3

EPS power connector (8-pin)

Y

TPM connector

Y

Serial port headers

1

RGB LED pin header

Y

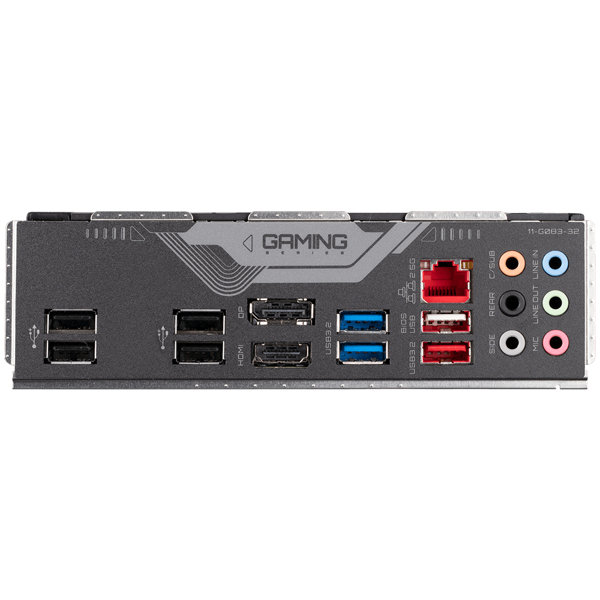

Rear panel I/O ports



USB 2.0 ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.2

USB connector type

USB Type-A, USB Type-C

Storage controllers



Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, SATA III

Number of HDDs supported

4

RAID support

Y

RAID levels

0, 1, 5, 10

Network



Ethernet LAN

Y

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

N

BIOS



BIOS type

EFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Y

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Expansion slots



PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Graphics



On-board graphics card

Y

Graphics card family

Intel

Graphics card

HD Graphics

Maximum resolution

4096 x 2304 pixels

HDCP

Y

On-board graphics card model

Intel® HD Graphics

Weight & dimensions



Width

305 mm

Depth

244 mm

Packaging content



Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
