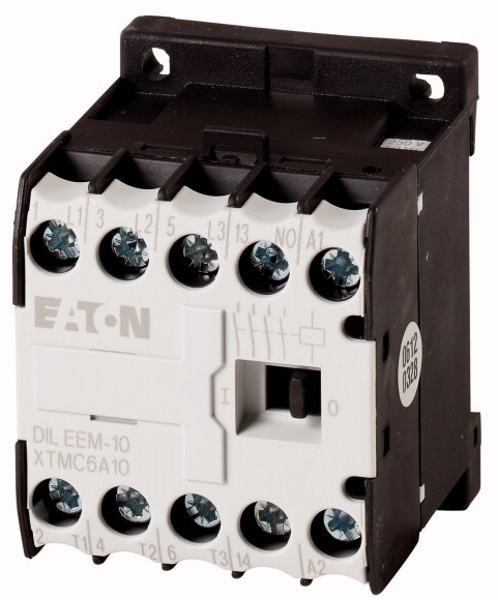

Contacteur de puissance EATON 051608 DILEEM-10 3p+1NO 3kW

<a href="https://datasheet.eaton.com/datasheet.php?model=051608" style="display: block;">https://datasheet.eaton.com/datasheet.php?model=051608</a><br><br>Application: Mini Contactors for Motors and Resistive Loads, Contactors DILEEM, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Description: With auxiliary contact, Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 6.6 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 22 A, enclosed: Ith= 16 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 50 A, enclosed: Ith= 40 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 1.5 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 3 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 1.1 kW, 380 V 400 V: P= 2.2 kW, 660 V 690 V: P= 2.2 kW, For use with: …DILEM, …DILE, Contacts N/O = Normally open: 1 N/O, Voltage AC/DC: AC operation<br><br>

Alimentation Eaton DILEEM-10 (230 V 50 Hz, 240 V 60 Hz). Couleur du produit : noir, blanc. Température de fonctionnement (TT) : -25 - 50 °C. Certifications : IEC/EN 60947-4-1 ; UL 508 ; CSA-C22.2 n° 14-05 ; CE. Tension d’entrée CA : 690 V. Fréquence de sortie : 50/60 Hz. Poids : 170 g.
