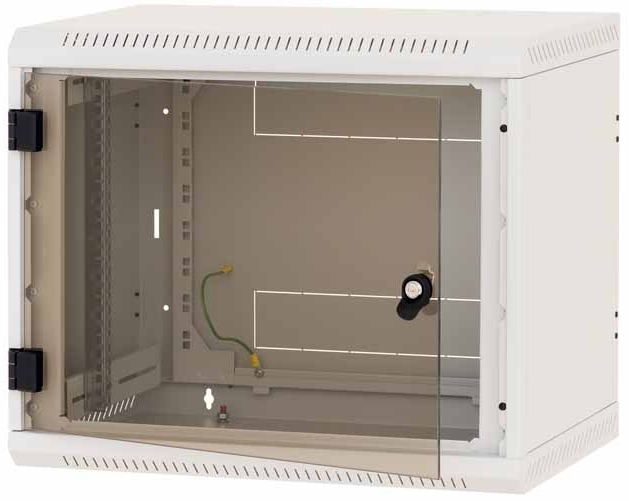

Triton Delta B - Coffret - RAL 7035 - 9U

<a href="https://www.triton.cz/en/data-cabinets/wall-mounted-cabinets/wall-mounted-cabinet-rba-one-sectioned" style="display: block;">https://www.triton.cz/en/data-cabinets/wall-mounted-cabinets/wall-mounted-cabinet-rba-one-sectioned</a><br><br><b>The fully welded wall-mounted cabinet is a classic for medium size installations. It is well-proven by thousands of successful installations. High quality processing ensures an excellent look and a high utility value.</b><br><br>Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet.<br>The cabinet door is glass standardly but it can be steel or perforated as required.<br>The hinge system enables almost 180┬░ wide opening of the door. Doors can be easily removed.<br><br><b>ADJUSTABLE VERTICAL RAILS:</b><br>One pair of vertical 19ΓÇ£ rails is freely adjustable in any depth of the cabinet. This simplifies mounting of the device and organisation of connecting cables.<br><br><b>BREAKOUT-TYPE BLANKING PANELS:</b><br>Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, that are parts of the cabinet supply, to seal the cabinet opening against dust penetration.<br><br><b>Supply includes:</b><br>- Key - front door 2x.<br>- Screw 6x50 4x.<br>- Washer 6.6 4x.<br>- Dowel 10 4x.<br>- Captive nut M6 8x.<br>- Blanking panel with brush 1x.<br><br><b>Material:</b><br>- Safety hardened glass 5mm thick.<br>- Steel sheet.<br><br>- 19ΓÇ£ one-sectioned wall-mounted cabinet with IP 30 protection.<br>- Cabinet is to be hanged right on the wall.<br>- Cabinet components include two sliding vertical rails.<br>- Cabinet construction: compact welded cabinet; glass door: safety hardened glass, thickness 5mm.<br>- Cabinets are intended for installation of data and telecommunication devices and their distribution systems.<br>- The frame of the cabinet and all the removable parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet.<br>- There is one M8 screw placed on the bottom part of the cabinet as an earthing main point.<br>- Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet.<br><br>
