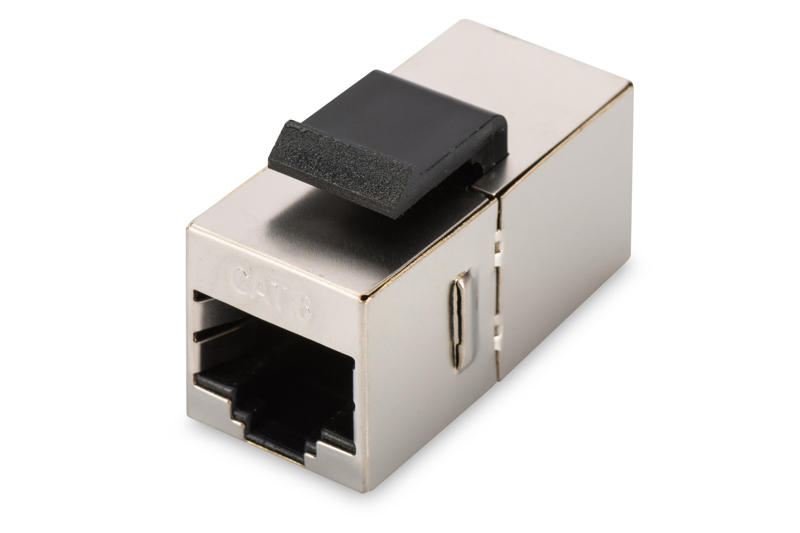

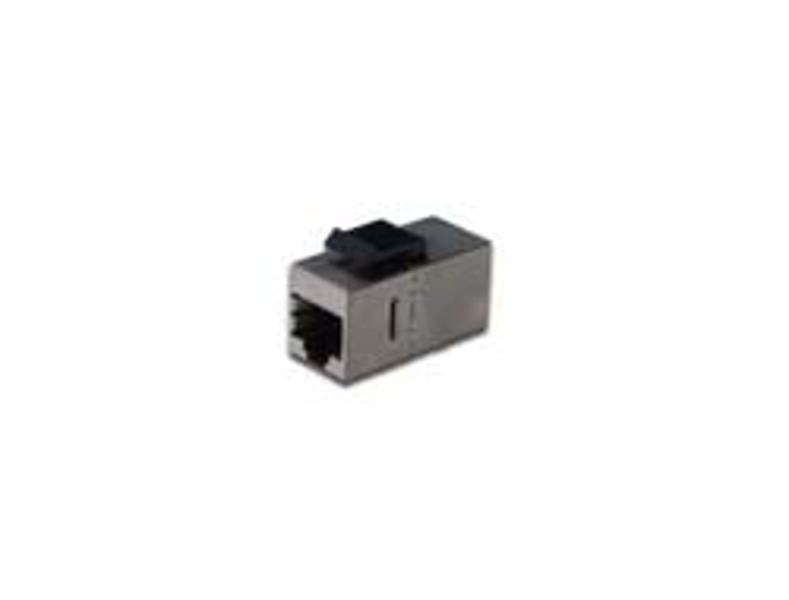

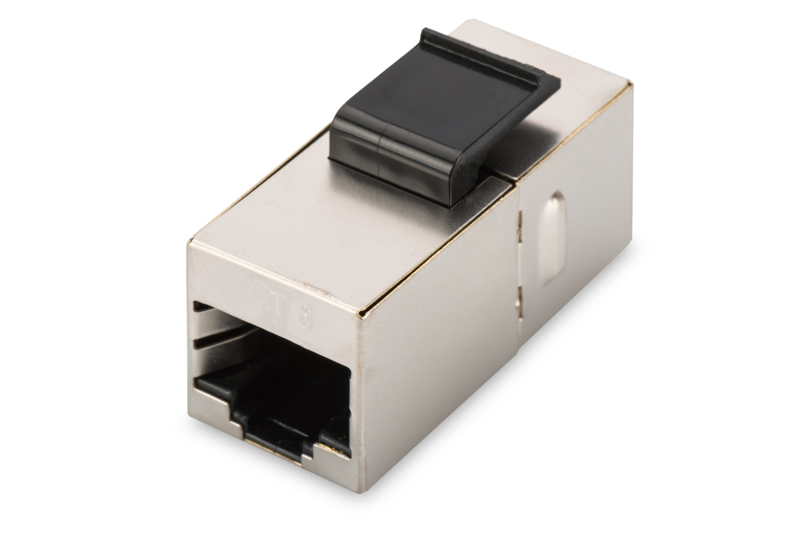

Connecteur DIGITUS DN-93613-1 CAT6

<a href="https://de.assmann.shop/ean.php?ean=4016032266846&amp;lang=en" style="display: block;">https://de.assmann.shop/ean.php?ean=4016032266846&amp;lang=en</a><br><br>The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.<br><br><ul><li>Transmission properties: Category 6</li><li>Housing material: Zinc die-cast, nickel-plated</li><li>RJ45 female material: ABS UL 94V-0</li><li>RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact</li><li>RJ45 shielding: Tinned bronze</li><li>Conductor plate: FR4, UL 94V-0</li><li>Physical properties:</li><li>Insertion force: 30N max. (IEC 60603-7-5)</li><li>Retention strength: 7.7 kg between jack and plug</li><li>Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)</li><li>Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>Area of application: Up to 250 MHz, 1GBase-T</li><li>Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>IDC wire size: 22 – 26 AWG solid and stranded conductor</li><li>Insulation resistance: > 500 MOhm</li><li>Contact resistance: < 20 MilliOhm</li><li>Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)</li><li>Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+</li><li>General properties:</li><li>Suitable for 483 mm (19") cabinet mounting</li><li>2x RJ45 Female, 8P8C</li><li>360° shield coverage</li><li>Connection 1:1</li><li>Technical properties:</li></ul>
