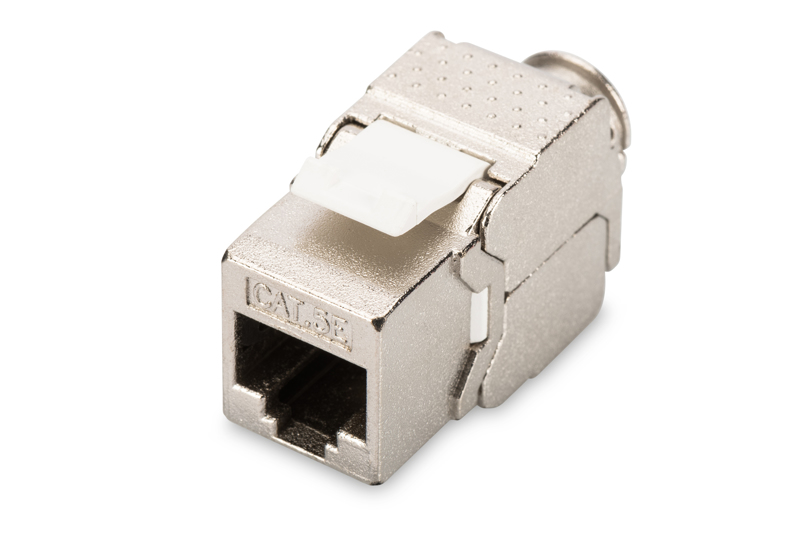

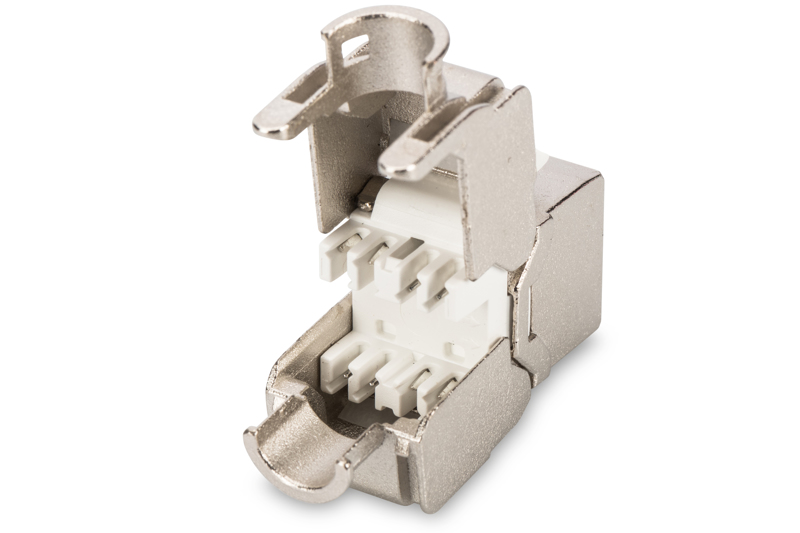

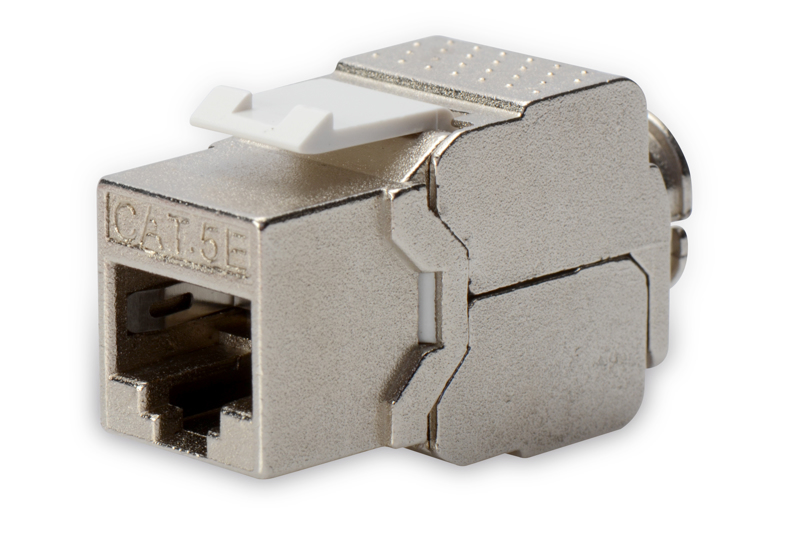

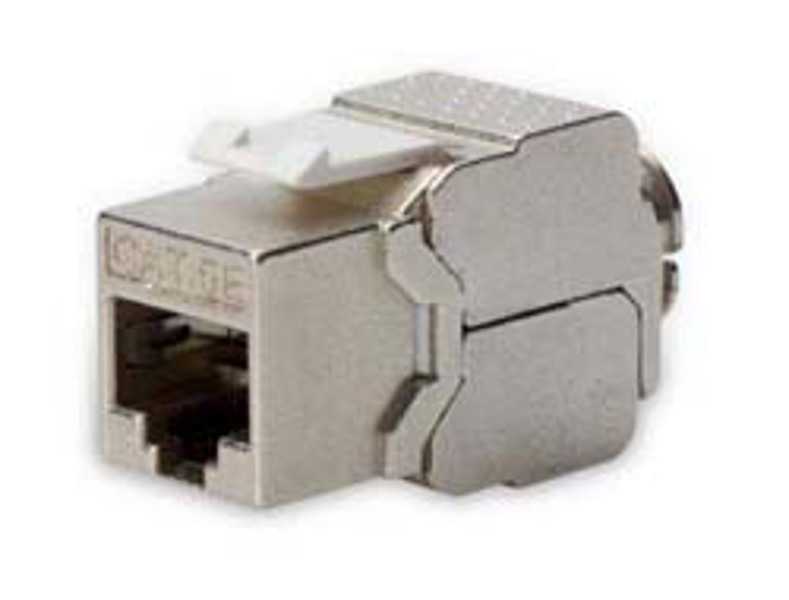

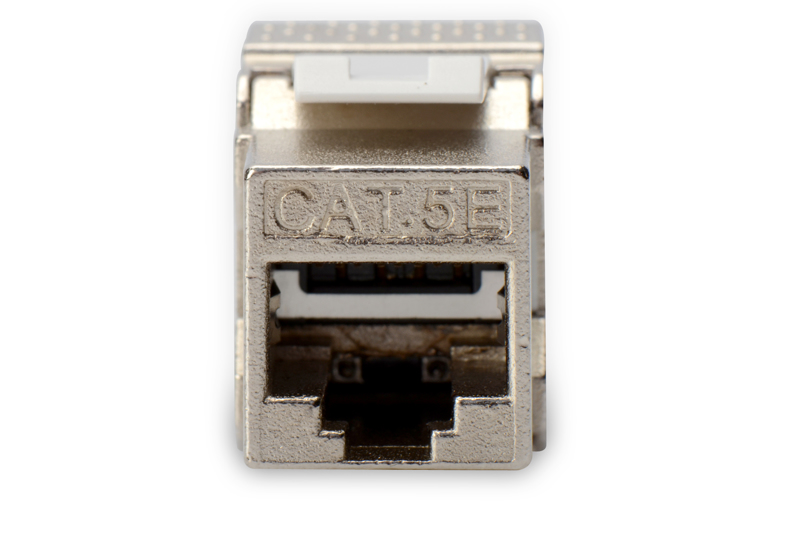

<a href="https://de.assmann.shop/ean.php?ean=4016032366300&lang=en" style="display: block;">https://de.assmann.shop/ean.php?ean=4016032366300&lang=en</a><br><br>CAT 5e Keystone Jack, shielded,Class D, RJ45 to LSA, tool free connection<br><br><ul><li>Transmission properties: Category 5e</li><li>360┬░ shield coverage</li><li>Technical properties:</li><li>Housing material: Zinc die-cast, nickel-plated</li><li>RJ45 female material: ABS UL 94V-0</li><li>RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact</li><li>RJ45 shielding: Tinned bronze</li><li>LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze</li><li>Conductor plate: FR4, UL 94V-0</li><li>Physical properties:</li><li>Insertion force: 30N max. (IEC 60603-7-5)</li><li>Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T</li><li>Retention strength: 7.7 kg between jack and plug</li><li>Operation temperature: -20┬░ C to +70 ┬░C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)</li><li>Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>IDC wire size: 22 ΓÇô 26 AWG solid and stranded conductor</li><li>Insulation resistance: > 500 MOhm</li><li>Contact resistance: < 20 MilliOhm</li><li>Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)</li><li>Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C</li><li>General properties:</li><li>Suitable for patch panels and mounting outlets</li><li>RJ45 female, 8P8C</li><li>Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B</li><li>Cable fixing with smart cable ties</li><li>Tool-free installation</li></ul>
Module Keystone Digitus CAT 5e classe D, blindé. Couleur du produit: Argent, Connecteur 1: RJ45, Connecteur 2: LSA. Poids : 23 g. Volume d'emballage: 210 cm³, Largeur d'emballage: 100 mm, Profondeur d'emballage: 20 mm. Pays d'origine : Chine
