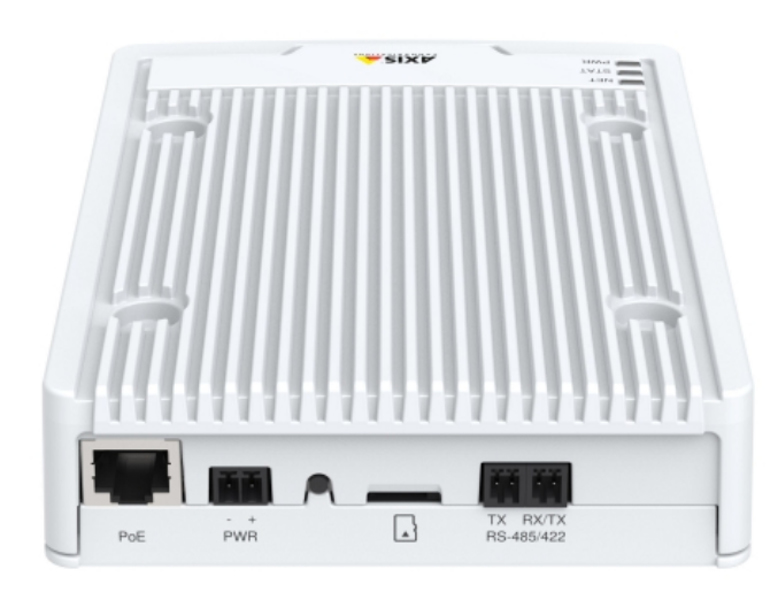

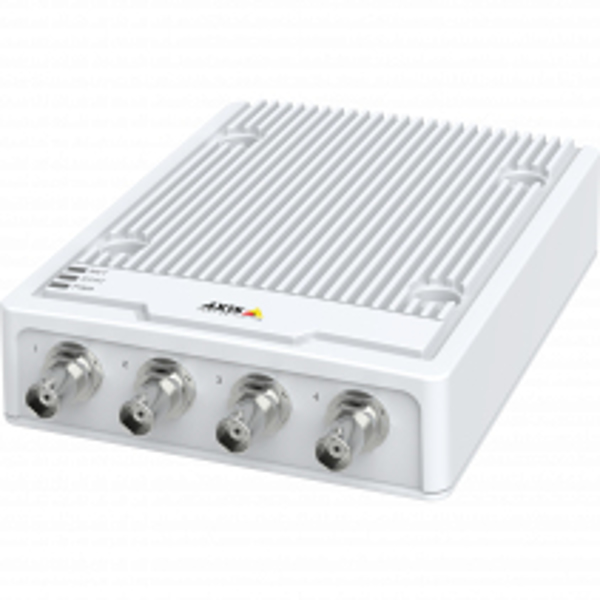

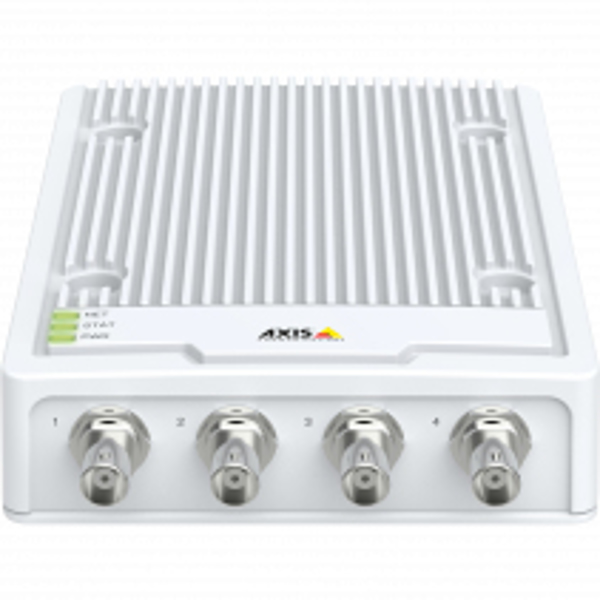

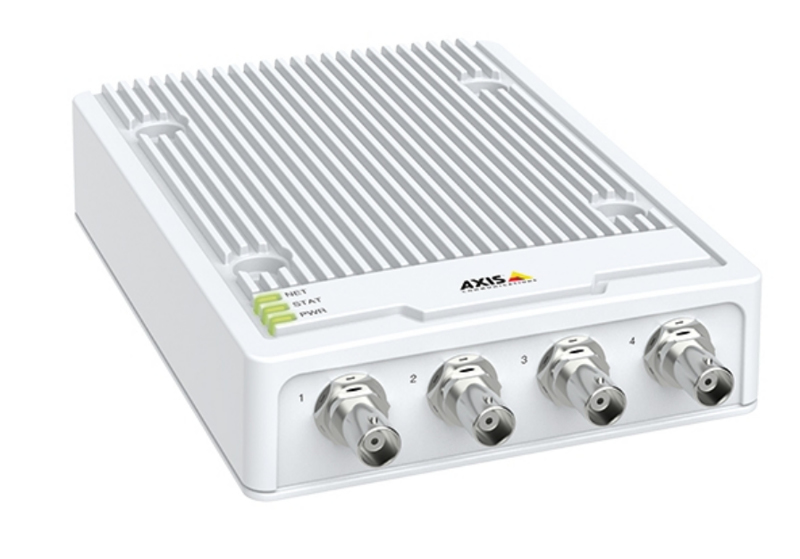

<a href="https://www.axis.com/products/axis-m7104" style="display: block;">https://www.axis.com/products/axis-m7104</a><br><br>AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoderΓÇÖs firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.<br><br><ul><li>Extended capacity for analytics; Full frame rate in all resolutions; PoE and PTZ support; Signed firmware and secure boot; Zipstream with support for H.264/H.265</li></ul>
Axis M7104. Maximum video resolution: 720 x 576 pixels, Maximum frame rate: 30 fps, Video compression formats: AVC,H.264,H.265,HEVC,MPEG4. Security algorithms: HTTPS. Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour,..., Copper ethernet cabling technology: 10BASE-T,100BASE-T,1000BASE-T, Networking standards: IEEE 802.3af,IEEE 802.3at. Power consumption (typical): 4.7 W. Width: 187 mm, Height: 37 mm, Weight: 650 g
| Estimate Gross Weight | 0.83 |
|---|
General
Maximum video resolution
720 x 576 pixels
Maximum frame rate
30 fps
Video compression formats
AVC,H.264,H.265,HEVC,MPEG4
Security algorithms
HTTPS
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Copper ethernet cabling technology
10BASE-T,100BASE-T,1000BASE-T
Networking standards
IEEE 802.3af,IEEE 802.3at
Power consumption (typical)
4.7 W
Width
187 mm
Height
37 mm
Weight
650 g
