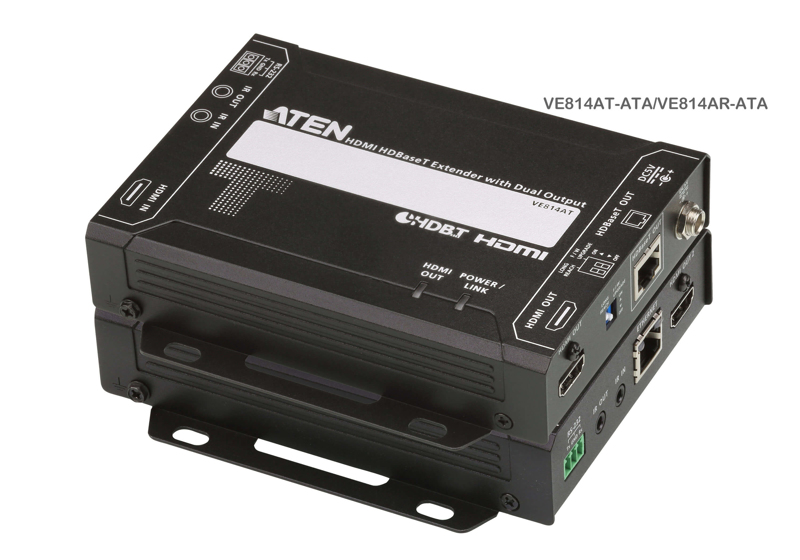

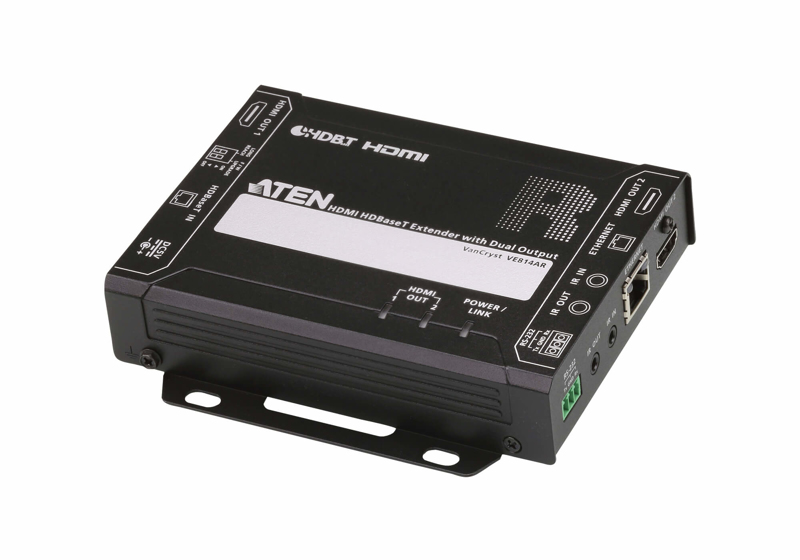

Extendeur HDMI HDBaseT ATEN VanCryst VE814A avec double sortie

<a href="https://www.aten.com/global/en/products/professional-audiovideo/video-extenders/ve814a/#.W2v_eM4zYkI" style="display: block;">https://www.aten.com/global/en/products/professional-audiovideo/video-extenders/ve814a/#.W2v_eM4zYkI</a><br><br>ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.<br><br>The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable. <br><br>The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.<br><br><ul><li>Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable</li><li>Supports wide screen format</li><li>Built-in 8 kV/15 kV ESD protection</li><li>Plug-and-play</li><li>Rack-mountable</li><li>Note: The function is supported by VE814A-AT only.</li><li>HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible</li><li>Superior video quality:</li><li>• 4K up to 100 m</li><li>• 1080p up to 150 m when in HDBaseT Long Reach Mode</li><li>Extends Ethernet communication using the Ethernet pass-through port*</li><li>Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz</li><li>ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output</li><li>RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners</li></ul>

Athens VE814A. Type : Émetteur et récepteur AV. Résolution maximale : 4096 x 2160 pixels. Types de câbles pris en charge : Cat5e, Cat6, Cat6a. Connectivité : Filaire. Tension de fonctionnement : 5 V. Consommation électrique (émetteur) (max.) : 5,1 W. Consommation électrique (récepteur) (max.) : 7,9 W. Dimensions du récepteur (l x P x H) : 123 x 140,4 x 30 mm. Poids du récepteur : 470 g. Dimensions de l’émetteur (l x P x H) : 123 x 140,4 x 30 mm.
