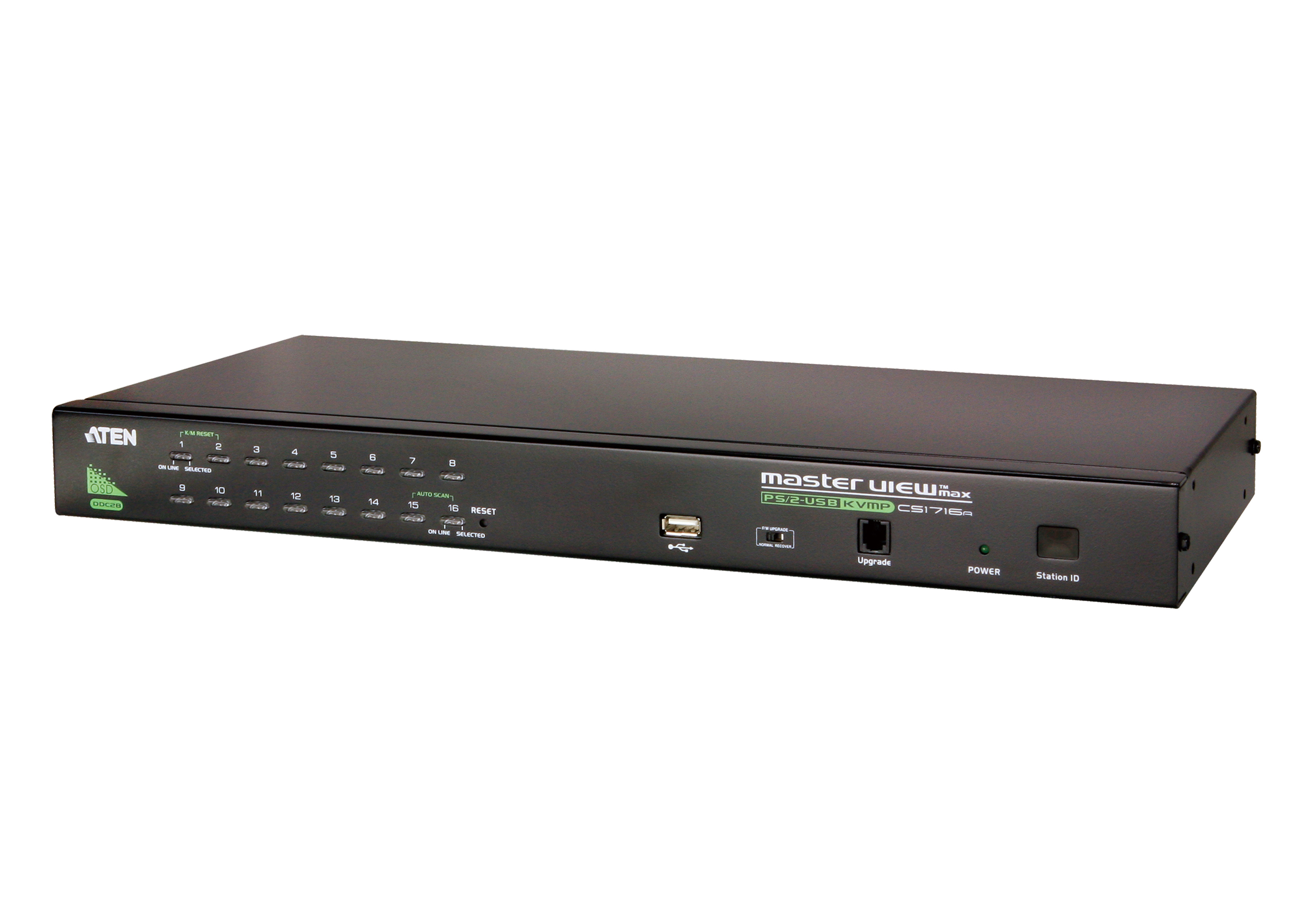

ATEN CS1716A - Commutateur KVM - 16 ports KVM

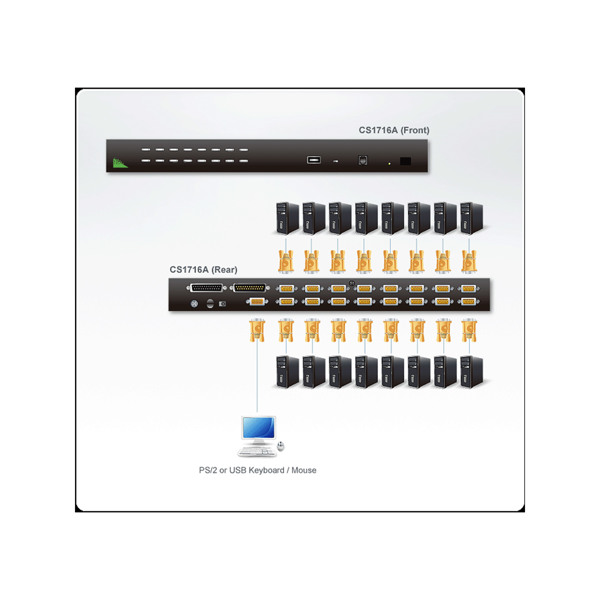

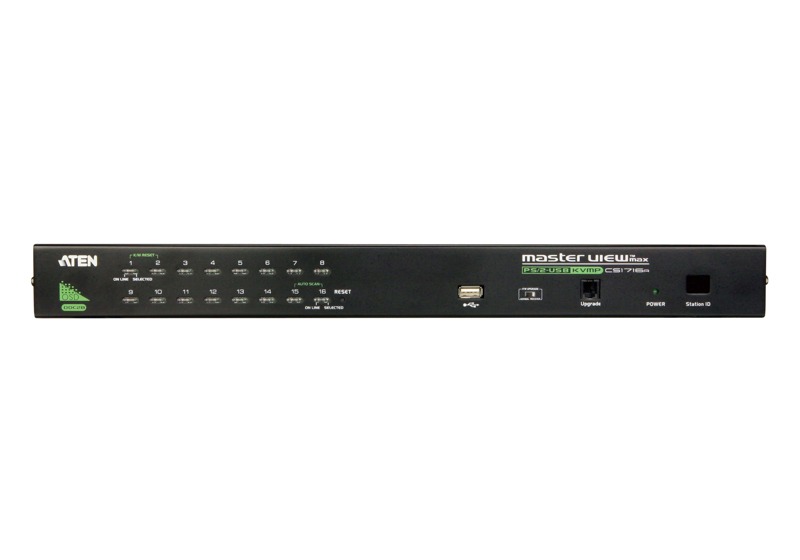

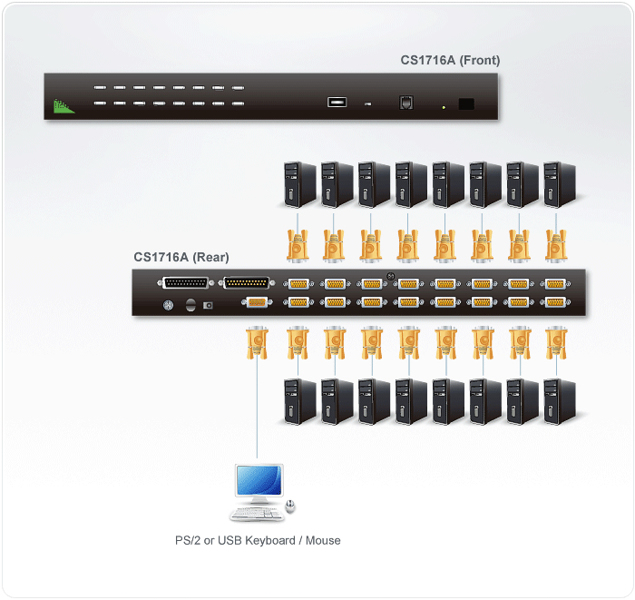

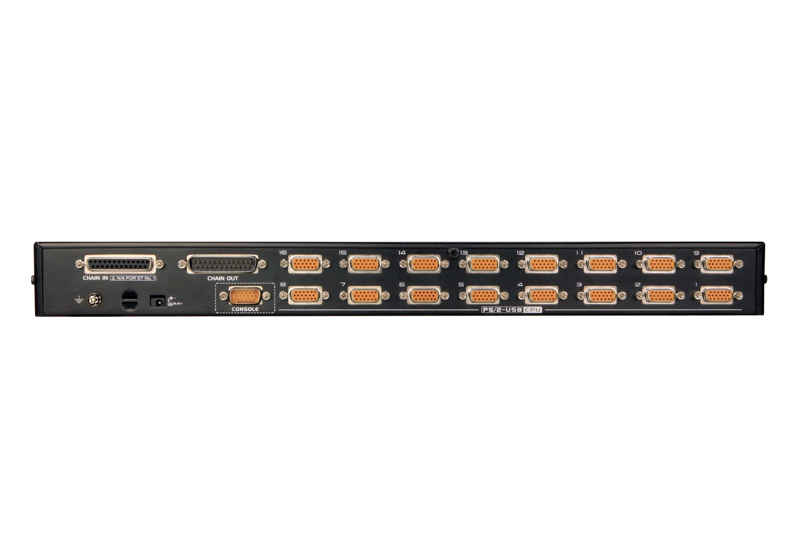

<a href="https://www.aten.com/global/en/products/kvm/rack-kvm-switches/cs1716a/#.WgLGkXBwklQ" style="display: block;">https://www.aten.com/global/en/products/kvm/rack-kvm-switches/cs1716a/#.WgLGkXBwklQ</a><br><br>The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.<br><br><ul><li>One USB-PS/2 console controls up to 16 computers</li><li>Superior video quality - up to 2048 x 1536; DDC2B</li><li>No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus</li><li>Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position</li><li>Port names automatically reconfigured when station sequence is changed</li><li>Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each</li><li>Auto Scan feature for monitoring user-selected computers</li><li>Broadcast Mode - operation simultaneously performed on all selected computers... etc</li><li>Hot pluggable - add or remove computers without having to power down the switch</li><li>Buzzer on/off via hotkey and OSD</li><li>Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable</li><li>Daisy-chain up to 31 additional units - control up to 512 computers from a single console</li><li>Rack mountable in 19" system rack (1U)</li><li>* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.</li><li>Front accessible USB port allows each computer to access USB peripherals*</li><li>Dual Interface - supports computers and console with PS/2 or USB keyboards and mice</li><li>Multiplatform support - Windows, Linux, Mac and Sun</li><li>Video DynaSyncâ„¢ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution</li><li>Supports USB keyboards for PC, Mac and Sun</li><li>Auto PS/2 and USB interface detection</li><li>USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere</li></ul>

Athens CS1716A. Type de port vidéo : VGA. Résolution maximale : 2048 x 1536 pixels. Intervalle de numérisation : 255 s. Couleur : noir. Capacité du rack : 1 U. Matériau du boîtier : métal. Consommation électrique (standard) : 6,6 W. Largeur : 433 mm. Profondeur : 160 mm. Hauteur : 44 mm.
