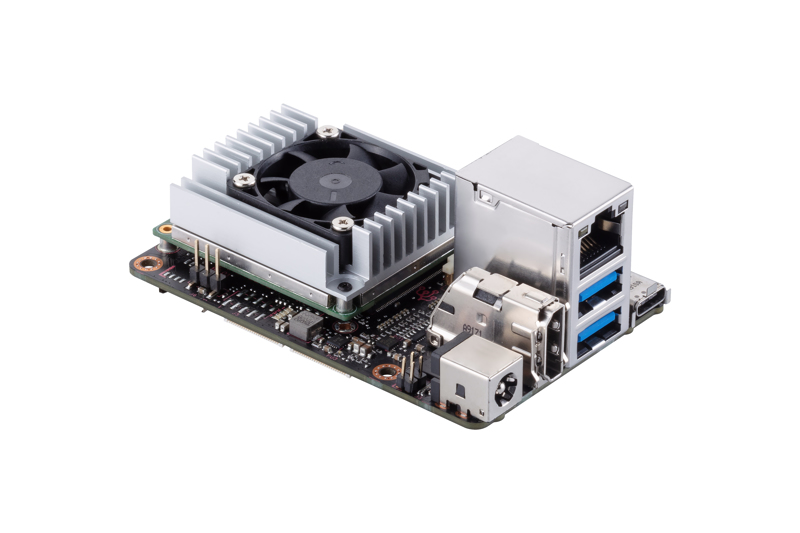

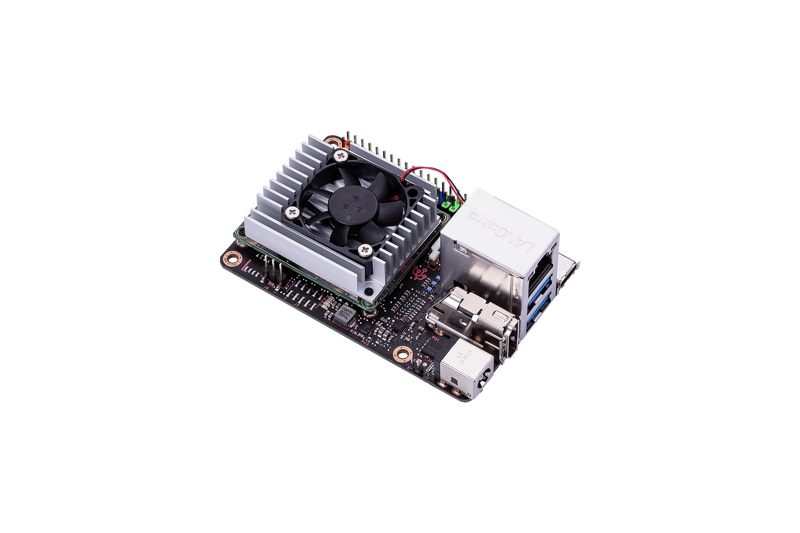

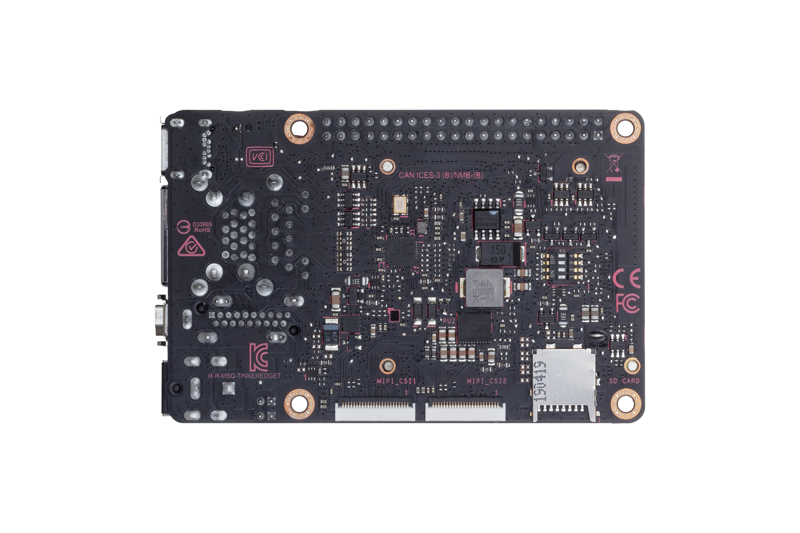

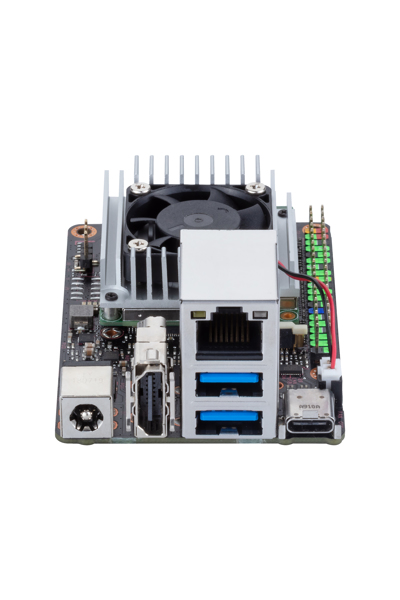

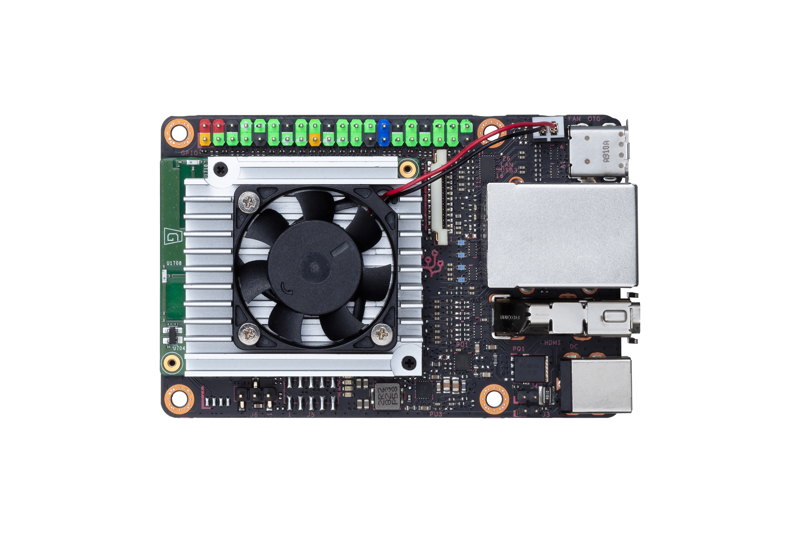

ASUS Tinker Edge T NXP I.MX 8M 1GB

<a href="https://tinker-board.asus.com/product/tinker-edge-t.html" style="display: block;">https://tinker-board.asus.com/product/tinker-edge-t.html</a><br><br><b>AI accelerator (Edge TPU)</b><br>Tinker Edge T is a single-board computer (SBC) specially designed for AI applications. It features the Google Edge TPU, a machine learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this onboard ML accelerator, Tinker Edge T is capable of performing four tera-operations per second (TOPS) using only 0.5 watts per unit of computation. It is also optimized for TensorFlow Lite models, making it easy to compile and run common ML models.<br><br><b>ADVANCED POWER DESIGN</b><br>Most SBC motherboards only offer a 15 watt (5V 3A) power design, which can cause device and system instability when there are multiple connected devices. Other SBCs have power designs that lower the performance of their I/O ports. Tinker Edge T has a special power design that, together with a DC head power supply, delivers up to 45 watts of power, enabling stable system operation and full I/O performance, even with multiple connected devices. Additionally, an exclusive power-protection design activates automatically if the supplied current and voltage change significantly, effectively protecting the board and all connected devices.<br><br><b>NXP I.MX 8M PROCESSOR</b><br>With its powerful and modern quad-core ARM-based NXP i.MX 8M processor, Tinker Edge T offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications. Tinker Edge T features 1 GB of LPDDR4 memory, the 4th generation of low-power DDR DRAM technology, offering faster speeds and even lower power consumption for improved system performance and efficiency. Tinker Edge T also comes equipped with an onboard 8 GB eMMC and SD 3.0 interface that offers significantly faster read and write speeds for the OS, applications and file storage.<br><br><b>HEATSINK INCLUDED</b><br>Tinker Edge T includes an active heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.<br><br><b>MORE CONNECTIVITY OPTIONS FOR DEVELOPERS</b><br>Tinker Edge T features a rich I/O interface, including one MIPI-DSI connection for displays and touch screens, and two MIPI-CSI connections for compatible cameras to enable computer vision for applications such as depth measurement, smart vending machine QR code payment systems and interactive advertising.<br><br>Tinker Edge T has a maker-friendly design that offers many carefully considered features to provide a superior experience for first-time builders and seasoned hobbyists alike. Programmable LEDs let makers develop custom lighting behaviors, such as system notifications and status indicators, and the color-coded GPIO header makes it easy to recognize respective pin headers.<br><br>Tinker Edge T also features a full-size HDMI port, USB Type-A, USB Type-C, gigabit LAN and integrated Wi-Fi and Bluetooth for internet and network connectivity.<br><br><b>ENHANCED USER EXPERIENCE</b><br><br><b>Machine Learning Developer Tools</b><br>ASUS provides a robust API and SDK that enables users to deploy machine learning models to Tinker Edge T easily for applications such as image classification and object detection.<br><br><b>OS Flash Tool</b><br>Tinker Edge T comes with a cross-platform OS flash tool that enables easy OS image flashing to SD cards and USB drives, enabling you to get your system up and running quickly.<br><br><ul><li>SBC developer board featuring the Google Edge TPU and ARM processor for AI applications, an advanced power design and easy machine-learning model deployment</li><li>Google Edge TPU</li><li>More connectivity options for developers</li><li>Multi-platform tools for easy machine-learning model deployment and image burning</li></ul>

ASUS Tinker Edge T. Fabricant du processeur : NXP, Modèle du processeur : i.MX 8M. Mémoire interne maximale : 1 Go, Type de mémoire interne : LPDDR4-SDRAM, Canaux de mémoire : Dual-channel. Version USB : 2.0/3.2 Gen 1 (3.1 Gen 1), normes Wi-Fi : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), type d'interface Ethernet : Gigabit Ethernet. Modèle d'adaptateur graphique intégré : Vivante GC7000 Lite. Tension d'entrée CC : 12 - 19 V
