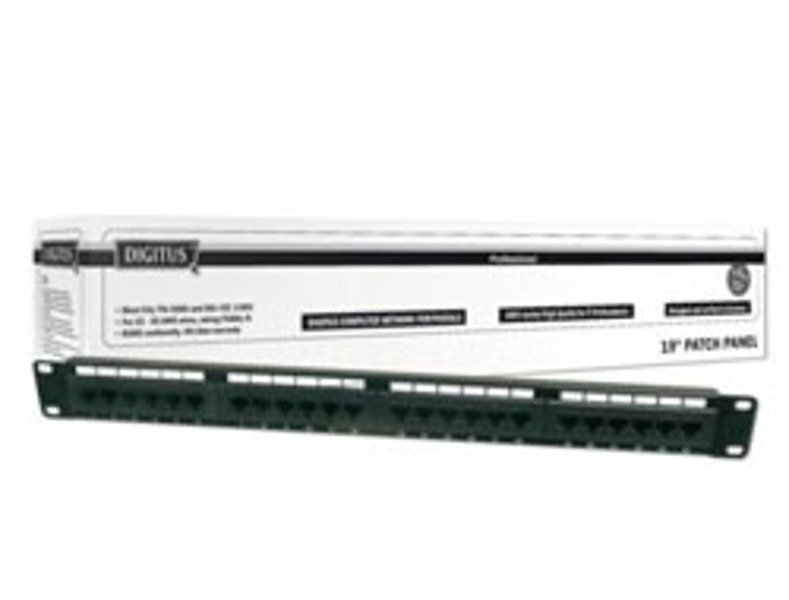

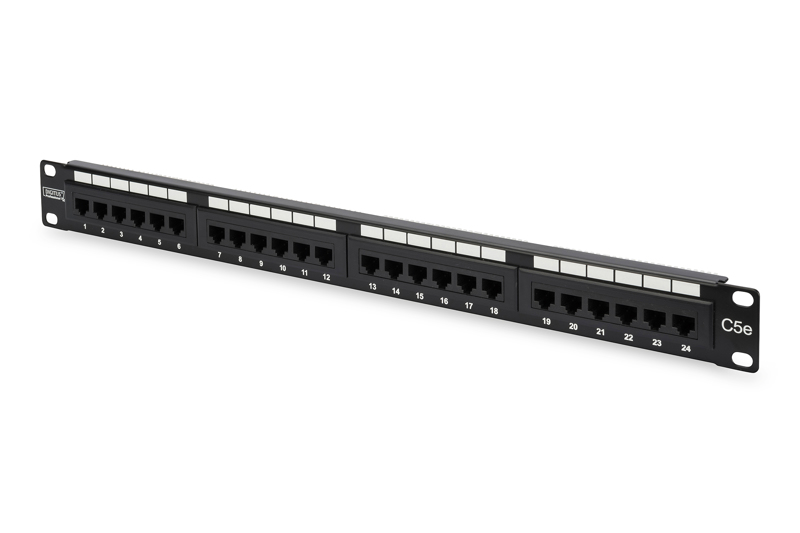

Panneau STP DIGITUS CAT5e 24 ports

<a href="https://de.assmann.shop/ean.php?ean=4016032241461&amp;lang=en" style="display: block;">https://de.assmann.shop/ean.php?ean=4016032241461&amp;lang=en</a><br><br>The unshielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units).The housing is made of 1.5 mm galvanized, cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.<br><br><ul><li>Transmission properties: Category 5e</li><li>Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110</li><li>RJ45 female material: ABS UL 94V-0</li><li>RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact</li><li>LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze</li><li>Ground wire: Not included</li><li>Conductor plate: FR4, UL 94V-0</li><li>Physical properties:</li><li>Insertion force: 30N max. (IEC 60603-7-5)</li><li>Retention strength: 7.7 kg between jack and plug</li><li>Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)</li><li>Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T</li><li>Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5</li><li>IDC wire size: 22 – 26 AWG solid and stranded conductor</li><li>Insulation resistance: > 500 MOhm</li><li>Contact resistance: < 20 MilliOhm</li><li>Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)</li><li>Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C</li><li>General properties:</li><li>Suitable for 483 mm (19") cabinet mounting</li><li>RJ45 female, 8P8C</li><li>Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B</li><li>Cable fixing with smart cable ties</li><li>Mechanical properties:</li></ul>
