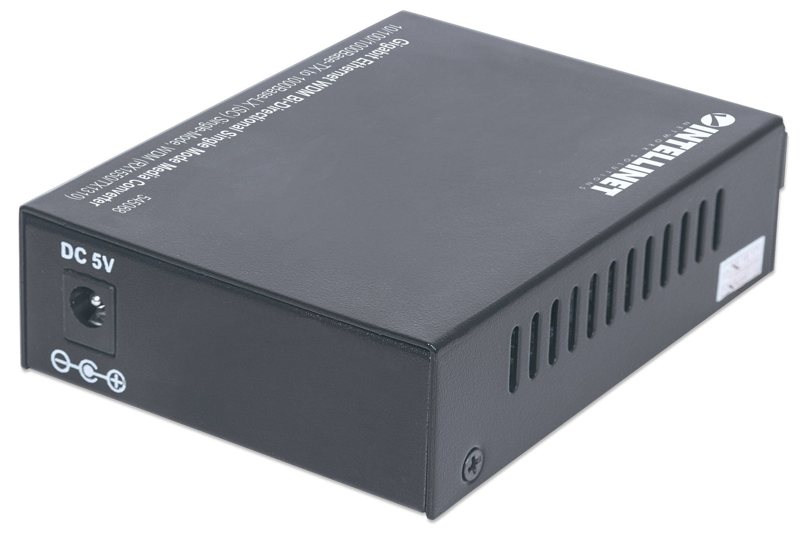

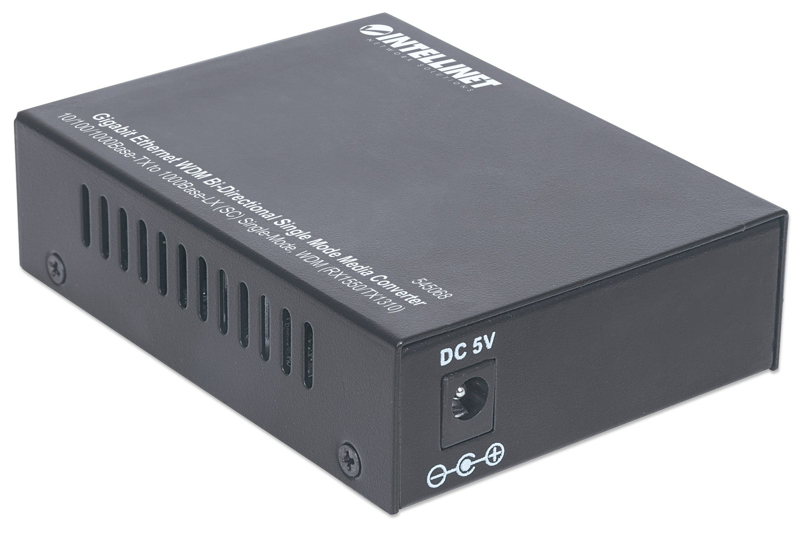

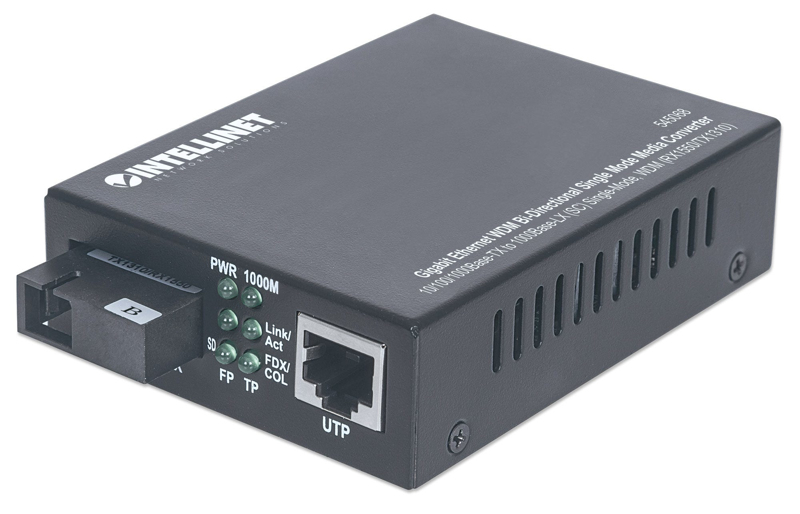

Module émetteur-récepteur SFP (Mini-GBIC) - Gigabit

<a href="https://intellinetnetwork.eu/catalogsearch/result/?q=545068" style="display: block;">https://intellinetnetwork.eu/catalogsearch/result/?q=545068</a><br><br>The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. <br> <br>Expands the Size of an Existing Network <br>This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers. <br> <br>Enhances the Distance between Networking Devices <br>Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. <br> <br>Cabling Flexibility <br>Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.<br><br><ul><li>Fibre SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)</li><li>External power adapter, 5 VDC</li><li>Three-Year Warranty</li><li>Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, model 545075</li><li>Data transfer rate: 10/100/1000 Mbps</li><li>WDM (wavelength division multiplexing) technology utilizes only one strand of fibre to transmit data on separate receive and transmit wavelengths</li><li>Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm</li><li>One 10/100/1000Base-TX RJ45 port, maximum distance 100 m / 300 ft.</li><li>RJ45 port with Auto MDI/MDI-X support</li><li>Status LEDs for easy monitoring of device status</li><li>Functions as a stand alone converter or can be used with the 14-slot Media Converter Chassis, model 507356</li></ul>

Convertisseur de média bidirectionnel monomode Intellinet Gigabit Ethernet WDM, 10/100/1000Base-Tx vers 1000Base-Lx (SC) monomode, 20 km, WDM (Rx1550/Tx1310) (prise européenne à 2 broches). Débit de données maximal : 1 000 Mbit/s. Interface d’entrée du convertisseur : 10Base-T, 100Base-TX, 1000Base-TX. Interface de sortie du convertisseur : 1000Base-LX. Connecteur fibre optique : SC. Connectivité : filaire. Distance de transfert maximale : 20 000 m. Structure du mode de fibre : monomode. Diamètres de câbles à fibre optique pris en charge (cœur/gaine) : 8,3/125, 8,7/125, 8/125, 10/125 µm. Couleur du produit : noir. Matériau du boîtier : métal. Certifications : FCC classe A, CE. Tension de sortie : 5 V, Courant de sortie : 1,2 A, Consommation électrique (max) : 5 W
