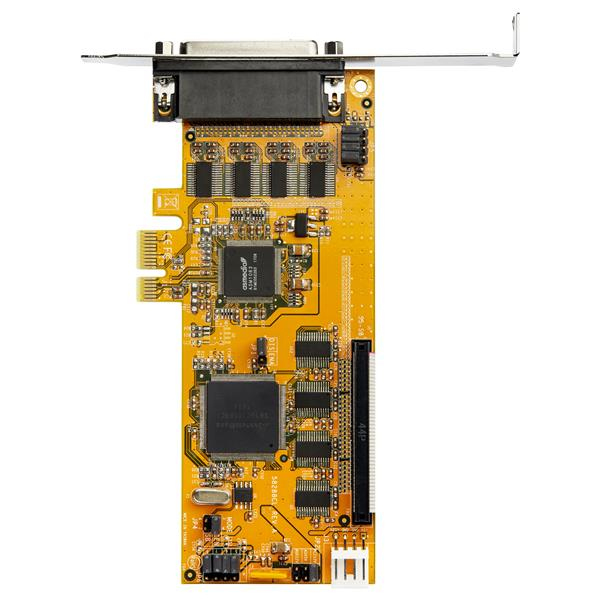

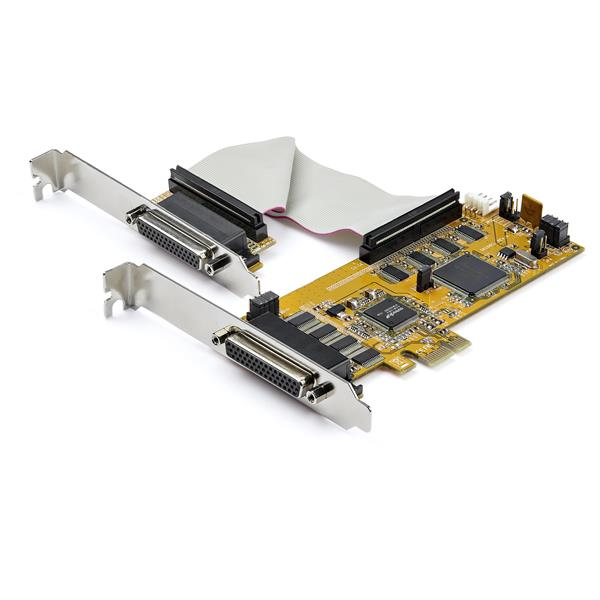

StarTech PEX8S1050LP Adaptateur série PCIe 8 ports RS232

Brand: StarTech.com SKU: PEX8S1050LP
€331.95
Price as listed. Taxes calculated at checkout.
In stock
Option
Part number: PEX8S1050LP
EAN: 0065030886574
Availability: 9 in stock

Description

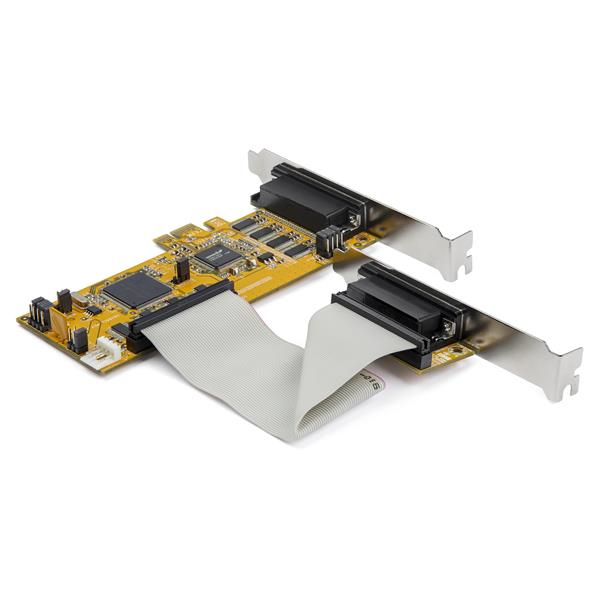

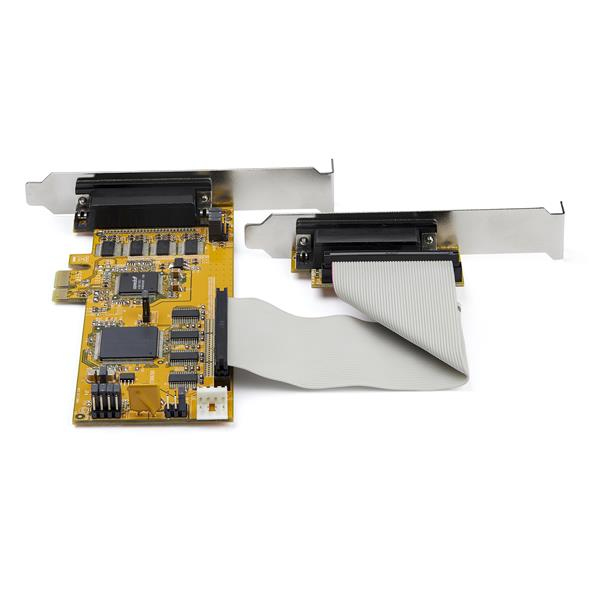

<a href="https://www.startech.com/product/PEX8S1050LP" style="display: block;">https://www.startech.com/product/PEX8S1050LP</a><br><br>Low Profile Serial Card | Full Profile Brackets Incl | 921.4Kbps | Windows and Linux<br/><br/>Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.PEX8S1050LP?is backed by a StarTech.com lifetime warranty and free lifetime technical support.<br/><br/>The StarTech.com Advantage<br/><br/>- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port &amp; 256 byte FIFO buffer<br/>- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface<br/>- COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers<br><br><ul><li>8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port &amp; 256 byte FIFO buffer_x000D_</li><li>OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface_x000D_</li><li>COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers_x000D_</li><li>VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_</li><li>STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_</li><li>_x000D_</li></ul>

StarTech.com Carte adaptateur série PCI Express RS232 8 ports - Carte série PCIe RS232 - UART 16C1050 - Carte contrôleur/extension série DB9 à profil bas - Protection ESD 15 kV - Windows/Linux. Interface hôte : PCIe, Interface de sortie : Série, Format de la carte d'extension : Pleine hauteur / Profil bas. Couleur : Jaune, Certifications : CE, FCC, TAA. Chipset : ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI, Débit en bauds : 926,1 Kbit/s, FIFO (premier entré, premier sorti) : 256 B. Systèmes d'exploitation Windows pris en charge : Windows 10, Windows 10 Éducation, Windows 10 Éducation x64, Windows 10 Entreprise, Windows 10..., Systèmes d'exploitation serveur pris en charge : Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server.... Largeur : 22 mm, Profondeur : 145 mm, Hauteur : 60 mm

Specifications

Estimate Gross Weight 0.7

Compatibility

General
Host interface
PCIe
Output interface
Serial
Expansion card form factor
Full-height / Low-profile
Product colour
Yellow
Certification
CE, FCC, TAA
Chipset
ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI
Baud rate
926.1 Kbit/s
FIFO (First In, First Out)
256 B
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
Width
22 mm
Depth
145 mm
Height
60 mm
